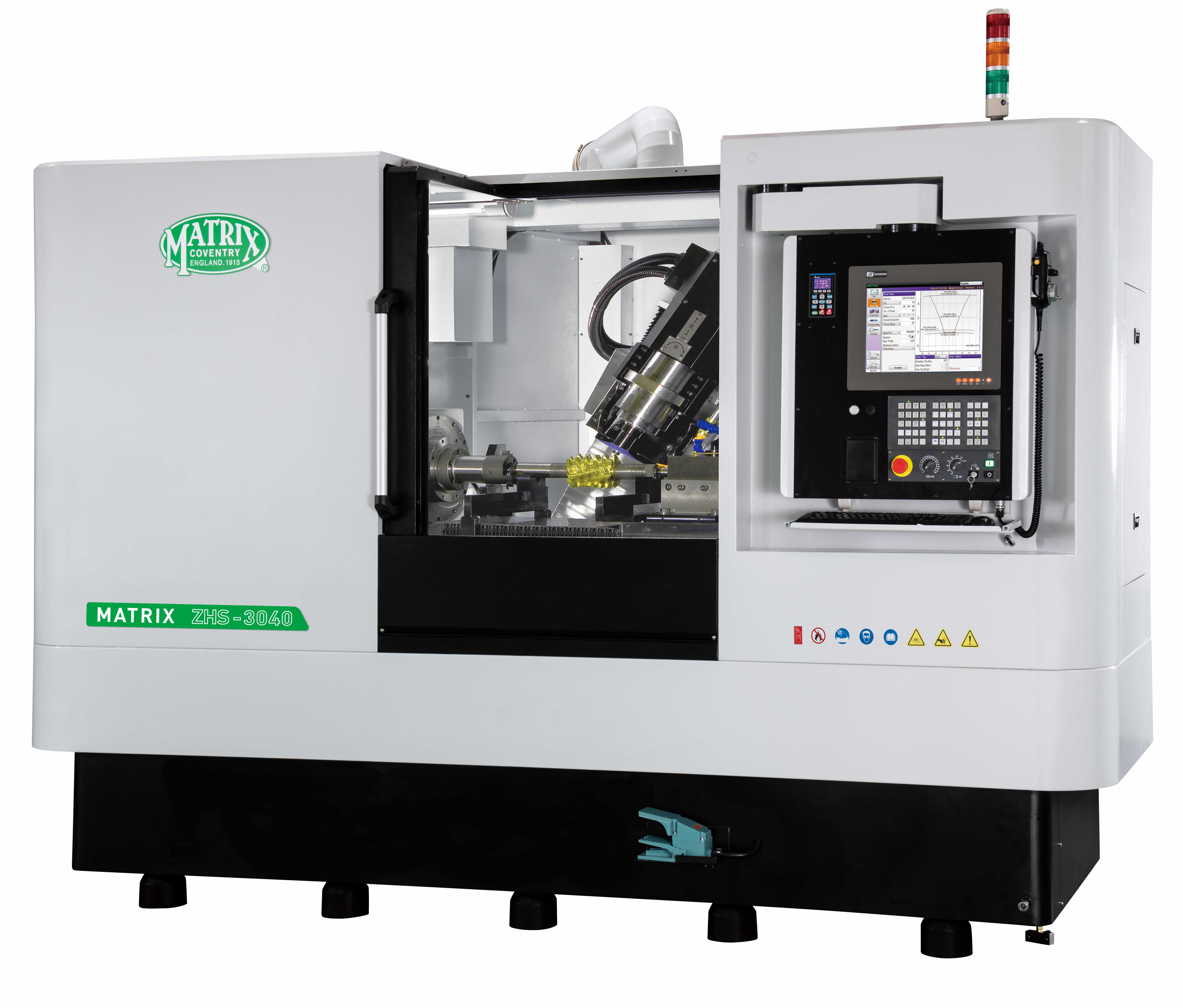

| Section | Specification | Unit | ZHS 3040 |
| BASIC TECHNICAL FEATURES | Max. Workpiece Diameter | mm | Ø250 |
| Min. Workpiece Diameter | mm | Ø20 | |
| Maximum Grinding Length | mm | 300 | |
| Max. Module | 10 | ||
| Max. Grinding Depth | mm | 35 | |
| Min. / Max. Number of Teeth | 1 / 99 | ||
| Max. Slot Angle | degree | 0° | |
| Min. / Max. Slot | 0 | ||
| Min. / Max. Center Distance | mm | 80 ~ 550 | |
| Max. Axial Grinding Travel Distance | mm | 450 | |
| Max. Workpiece Weight | kg | 30 | |
| TOOL INFORMATION | Min. / Max. Wheel Diameter | mm | 80 / 150 |
| Max. Wheel Speed | rpm | 10,000 | |
| Max. Wheel Width | mm | 40 | |
| Wheel Motor Power | kW | 15 | |
| ELECTRICAL SYSTEM | Voltage | V | 220 |
| Current Requirement | Amp | 50 | |
| Operating Room Temperature Requirement | °C | 10 ~ 40 | |
| Total Power | kVA | 20 | |
| CNC | Control Unit | Fanuc | |
| WEIGHT & DIMENSIONS | Machine Dimensions (W x L x H) | mm | 3,836 x 4,074 x 2,443 |
| Machine Weight | kg | 7,000 |
