Even during long-term heavy turning operations, heat distribution remains balanced.
The integrated cast structure and vibration damping system ensure high precision.

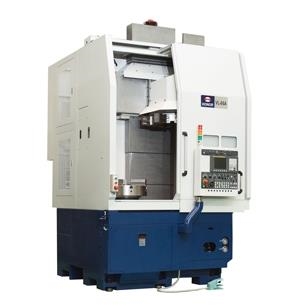

Thanks to the user-friendly vertical lathe design, loading workpieces, adjusting tools,
and chip disposal are now much easier.
| Section | Feature | Unit | VL-66A / AR | VL-66AT | VL-66H | VL-66M | VL-66MT |
| CAPACITY | Max. Swing Diameter | mm | Ø800 | Ø850 | Ø800 | ||
| Max. Turning Diameter | mm | Ø760 | Ø760 | Ø700 | |||
| Max. Turning Height | mm | 750 | 620 | 650 | |||
| SPINDLE | Table Diameter | mm | Ø457 (18") | Ø457 (18") | Ø457 (18") | ||
| Spindle Speed | rpm | 25–2,000 | 25–2,000 | 25–2,000 | |||
| Spindle Taper | A2-11 | A2-11 | A2-11 | ||||
| Spindle Diameter | mm | Ø160 | Ø160 | Ø160 | |||
| TURRET | Turret Type | H12 | H12 + H12 | V4 / V6 / V8 | H12 | H12 + H12 | |
| No. of Positions | 12 | 12 + 12 | 4 / 6 / 8 | 12 | 12 + 12 | ||
| OD Tool Holder | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | ||
| ID Tool Holder | mm | Ø40 (Ø50) | Ø40 (Ø50) | Ø40 (Ø50) | |||
| AXES | Rapid Traverse (X, Z Axes) | m/min | 20 | 20 | 20 | ||
| X-Axis Travel | mm | 385 | 50+550 | 385 | |||
| Z-Axis Travel | mm | 760 | 700 | 760 | |||
| Cutting Feed | mm/rev | 0.001–500 | 0.001–500 | 0.001–500 | |||
| Cross Feed | mm | 0–150 | 0–150 | 0–150 | |||
| MOTOR | Spindle Motor (50% ED) | kW | AC 22 / 18.5 | AC 22 / 18.5 | AC 22 / 18.5 | ||
| X, Z Axis Motor Power | kW | 4 / 7 | 4 / 4 | 4 / 7 | |||
| Live Tool Motor Power | kW | - | - | AC 7.5 / 11 | |||
| MACHINE SIZE | Width x Length | mm | 1,950 x 3,410 | 3,900 x 3,410 | 1,950 x 3,410 | 1,950 x 3,410 | 3,900 x 3,410 |
| Height | mm | 3,450 | 3,450 | 3,450 | |||
| Machine Weight | kg | 11,500 | 23,000 | 11,500 | 11,600 | 23,200 | |
