Even during long-term heavy turning operations, heat distribution is balanced.
The integrated cast structure and vibration prevention system ensure high precision.

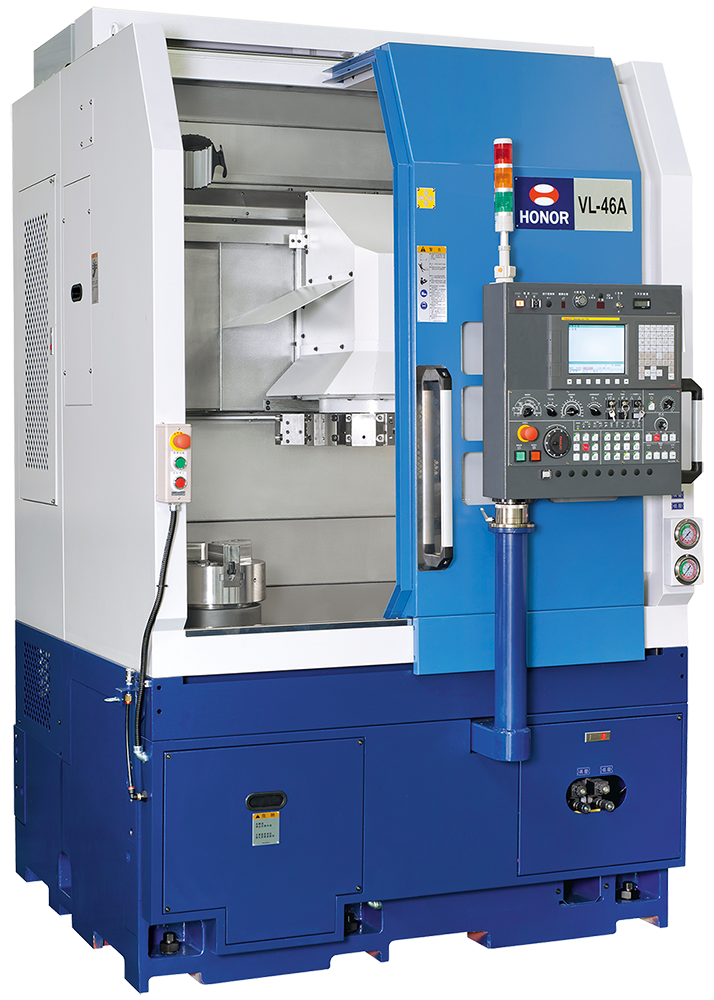

Thanks to the user-friendly vertical lathe design, loading workpieces, adjusting tools, and chip removal are now much easier.
| Section | Feature | Unit | VL-46A/AR | VL-46AT | VL-46G | VL-46H | VL-46M | VL-46MT |
| CAPACITY | Max. Turning Diameter | mm | Ø560 | Ø560 | Ø650 | Ø560 | ||
| Max. Machining Diameter | mm | Ø560 | Ø560 | Ø560 | Ø560 | |||
| Max. Machining Height | mm | 450 | 450 | 400 | 380 | |||
| SPINDLE | Table Diameter | mm | Ø305 (12") | Ø305 (12") | Ø305 (12") | |||
| Spindle Speed | rpm | 25–2,500 | 25–2,500 | 25–2,500 | ||||
| Spindle Taper | A2-8 | A2-8 | A2-8 | |||||
| Spindle Diameter | mm | Ø120 | Ø120 | Ø120 | ||||
| TURRET | Turret Type | H12 | H12 + H12 | G5 | V4 / V6 / V8 | H12 | H12 + H12 | |
| Number of Positions | pcs | 12 | 12 + 12 | 5 | 4 / 6 / 8 | 12 | 12 + 12 | |
| OD Tool Holder | mm | 25 x 25 | 25 x 25 | 25 x 25 | ||||
| ID Tool Holder | mm | Ø40 | Ø40 | Ø40 | ||||
| AXES | Rapid Feed (X, Z Axis) | m/min | 20 | 20 | 20 | |||
| X-Axis Travel | mm | 310 | -200 ~ +200 | -10 ~ +310 | 310 | |||
| Z-Axis Travel | mm | 460 | 550 | 460 | ||||
| Cutting Speed | mm/rev | 0.001–500 | 0.001–500 | 0.001–500 | ||||
| Cross Feed | mm | 0–150 | 0–150 | 0–150 | ||||
| MOTOR | Spindle Motor (%50 ED) | kW | AC 22 / 18.5 | AC 22 / 18.5 | AC 22 / 18.5 | |||
| X, Z Axis Motor Power | kW | 3 / 4 | 3 / 4 | 3 / 4 | ||||
| Live Tool Motor Power | kW | - | - | AC 3.7 / 5.5 | ||||
| MACHINE DIMENSIONS | Width x Length | mm | 1,700 x 3,100 | 3,400 x 3,100 | 1,700 x 3,100 | 1,700 x 3,100 | ||
| Height | mm | 2855 | 2855 | 2855 | ||||
| Machine Weight | kg | 6500 | 13000 | 6500 | 6500 | |||
