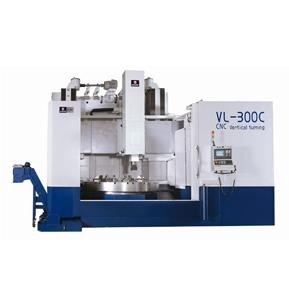

| Section | Specification | Unit | VL-300C | VL-300CM |
| CAPACITY | Max. Swing Diameter | mm | Ø3,600 | |
| Max. Turning Diameter | mm | Ø3,600 | ||
| Distance Between Ram and Table | mm | 880 - 2,380 | ||
| Max. Turning Height | mm | 2,000 | ||
| Max. Workpiece Weight | kg | 30,000 | ||
| SPINDLE | Table Diameter | mm | Ø3,000 | |
| Spindle Speed | rpm | 3 - 120 | ||
| Gearbox (Stage) | 2 | |||
| Live Tool Speed | rpm | - | 50 - 2250 | |
| ATC | Number of Positions | Qty | 16 | 20 |
| External Diameter Tool Holder | mm | □ 32 , □ 40 | ||
| Ram Cross Section | mm | 300 X 300 | ||
| AXES | Rapid Traverse (X, Z Axis) | m/min | 10 | |
| X Axis Travel | mm | -300 + 2,000 | ||
| Z Axis Travel | mm | 1,500 | ||
| Cutting Feed | mm/rev. | 2,000 | ||
| Cross Feed | % | 0 - 150 | ||
| Cross Feed Distance | mm | 1,500 ( 250 X 6 Stages ) | ||
| MOTOR | Spindle Motor (Cont./30 min.) | kw | AC 60 / 75 | AC 60 / 75 X 2 |
| X, Z Axis Motor Power | kw | 5.5 / 5.5 | ||
| Live Motor Power | kw | - | AC 15 / 18.5 | |
| MACHINE DIMENSIONS | Width x Length | mm | 8,500 X 6,500 | |
| Height | mm | 7,400 | 8,000 | |
| Machine Weight | kg | 99,000 | 100,000 | |
