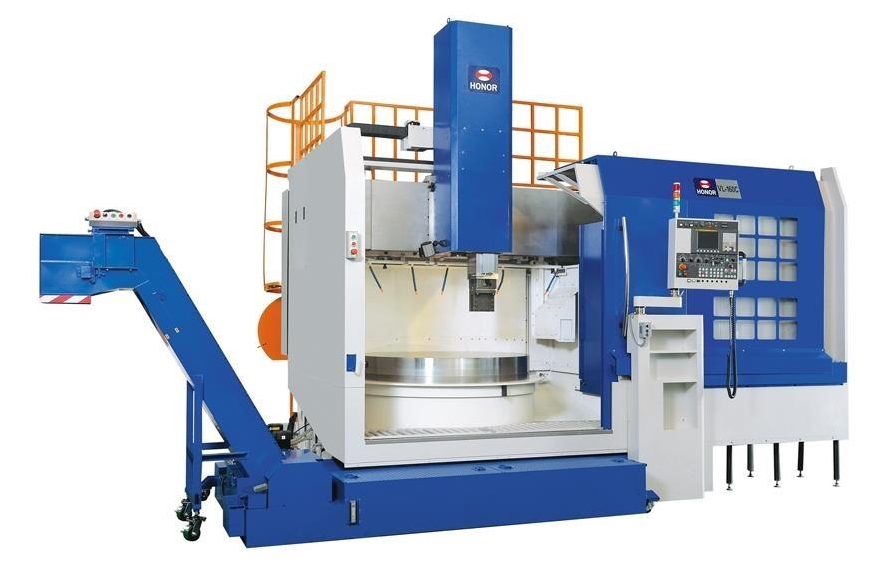

| Section | Specification | Unit | VL-160C | VL-160CM |
| CAPACITY | Max. Swing Diameter | mm | Ø2,000 | |
| Max. Turning Diameter | mm | Ø2,000 | ||
| Distance Between Ram and Table | mm | 650 - 1,450 | ||
| Max. Turning Height | mm | 1,200 | 1,170 | |
| Max. Workpiece Weight | kg | 8,000 | ||
| SPINDLE | Table Diameter | mm | Ø1,600 | |
| Spindle Speed | rpm | 3 - 250 | ||
| Gearbox (Stage) | 2 | |||
| Live Tool Speed | rpm | - | 50 - 2250 | |
| ATC | Number of Tool Positions | Pcs | 12 | 16 |
| External Diameter Tool Holder | mm | □ 25 , □ 32 , □ 40 | ||
| Ram Cross Section | mm | 220 X 220 | 220 X 220 | |
| 250 X 250 | ||||
| AXES | Rapid Traverse (X, Z Axes) | m/min | 10 | |
| X Axis Travel | mm | -200 + 1,150 | ||
| Z Axis Travel | mm | 900 | ||
| Cutting Feed Rate | mm/rev. | 0.001 - 500 | ||
| Cross Feeds | % | 0 - 150 | ||
| Cross Feed Distance | mm | 800 (200 X 4 Stage) | ||
| MOTOR | Spindle Motor (%50 ED) | kw | AC 45 / 37 | |
| X, Z Axis Motor Power | kw | 7 / 7 | ||
| Live Motor Power | kw | - | AC 11 / 15 | |
| MACHINE SIZE | Width x Length | mm | 7,100 X 5,200 | 7,400 X 5,200 |
| Height | mm | 5,250 | 5,650 | |
| Machine Weight | kg | 27,500 | 28,300 | |
