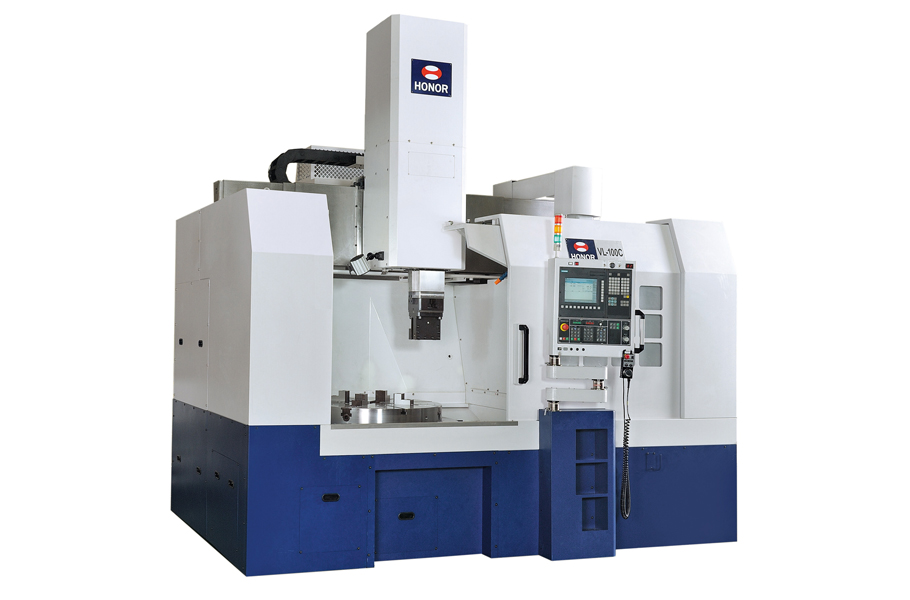

| Section | Specification | Unit | VL-100C | VL-100CM | VL-100CR | VL-100CRM |
|
CAPACITY
|
Max. Turning Diameter | mm | Ø1.200 | Ø1.200 | ||
| Max. Machining Diameter | mm | Ø1.200 | Ø1.200 | |||
| Max. Machining Height | mm | 650 | 650 | 800 | 800 | |
|
SPINDLE
|
Table Diameter | mm | Ø1.000 (40") | Ø1.000 (40") | ||
| Spindle Speed | rpm | 3-400 | 3-400 | |||
| Live Tool Speed | rpm | - | 50-2250 | - | 50-2250 | |
|
ATC
|
ATC | 12 | 12 | |||
| Tool Size | mm | 25, 32 | 25, 32 | |||
| Ram Section | mm | 200x200 | 220x220 | 200x200 | 220x220 | |
|
AXES
|
Rapid Traverse (X, Z Axes) | m/min | 10 | 10 | ||
| X Axis Travel | mm | -100+750 | -100+750 | |||
| Z Axis Travel | mm | 700 | 700 | |||
| Cutting Feedrate | mm/rev. | 0.001-500 | 0.001-500 | |||
| Cross Feed | mm | 0-150 | 0-150 | |||
|
MOTOR
|
Spindle Motor (50% ED) | kW | 30 / 37 | 30 / 37 | ||
| X, Z Axis Motor Power | kW | 4.0 / 4.0 | 4.0 / 4.0 | |||
| Live Motor Power | kW | - | 11 / 15 | - | 11 / 15 | |
| REQUIRED POWER | kW | 75 | 90 | 75 | 90 | |
|
MACHINE DIMENSIONS
|
Width x Length | mm | 4060 X 4020 | 4060 X 4020 | ||
| Height | mm | 4000 | 4550 | 4100 | 4700 | |
| Machine Weight | kg | 17.800 | 18.600 | 18.300 | 19.100 | |
