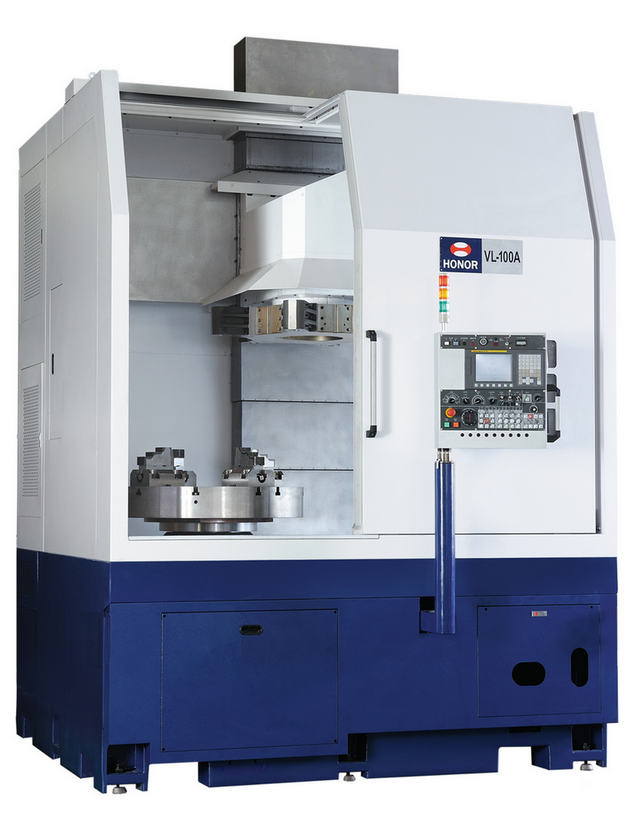

| Section | Feature | Unit | VL-100A | VL-100M |
| CAPACITY | Max. Swing Diameter | mm | Ø1,320 | |
| Max. Turning Diameter | mm | Ø1,100 | ||
| Max. Turning Height | mm | 920 | 900 | |
| SPINDLE | Table Diameter | mm | Ø1,000 (40") | |
| Spindle Speed | rpm | 5–850 | ||
| Spindle Taper | ISO 702-4 No. 15 (Ø380) | |||
| Spindle Diameter | mm | Ø200 | ||
| TURRET | Turret Type | H12 | ||
| Number of Positions | pcs | 12 | ||
| OD Tool Holder | mm | 32 x 32 | ||
| ID Tool Holder | mm | Ø50 | ||
| AXES | Rapid Feed (X, Z Axis) | m/min | 20 | |
| X-Axis Travel | mm | 625 | ||
| Z-Axis Travel | mm | 1,000 | ||
| Cutting Speed | mm/rev | 0.001–500 | ||
| Cross Feed | mm | 0–150 | ||
| MOTOR | Spindle Motor (%50 ED) | kW | AC 37 / 45 | |
| X, Z Axis Motor Power | kW | 4 / 7 | ||
| Live Tool Motor Power | kW | - | AC 7.5 / 11 | |
| MACHINE DIMENSIONS | Width x Length | mm | 2,700 x 4,000 | |
| Height | mm | 4,050 | ||
| Machine Weight | kg | 21,000 | 21,800 | |
