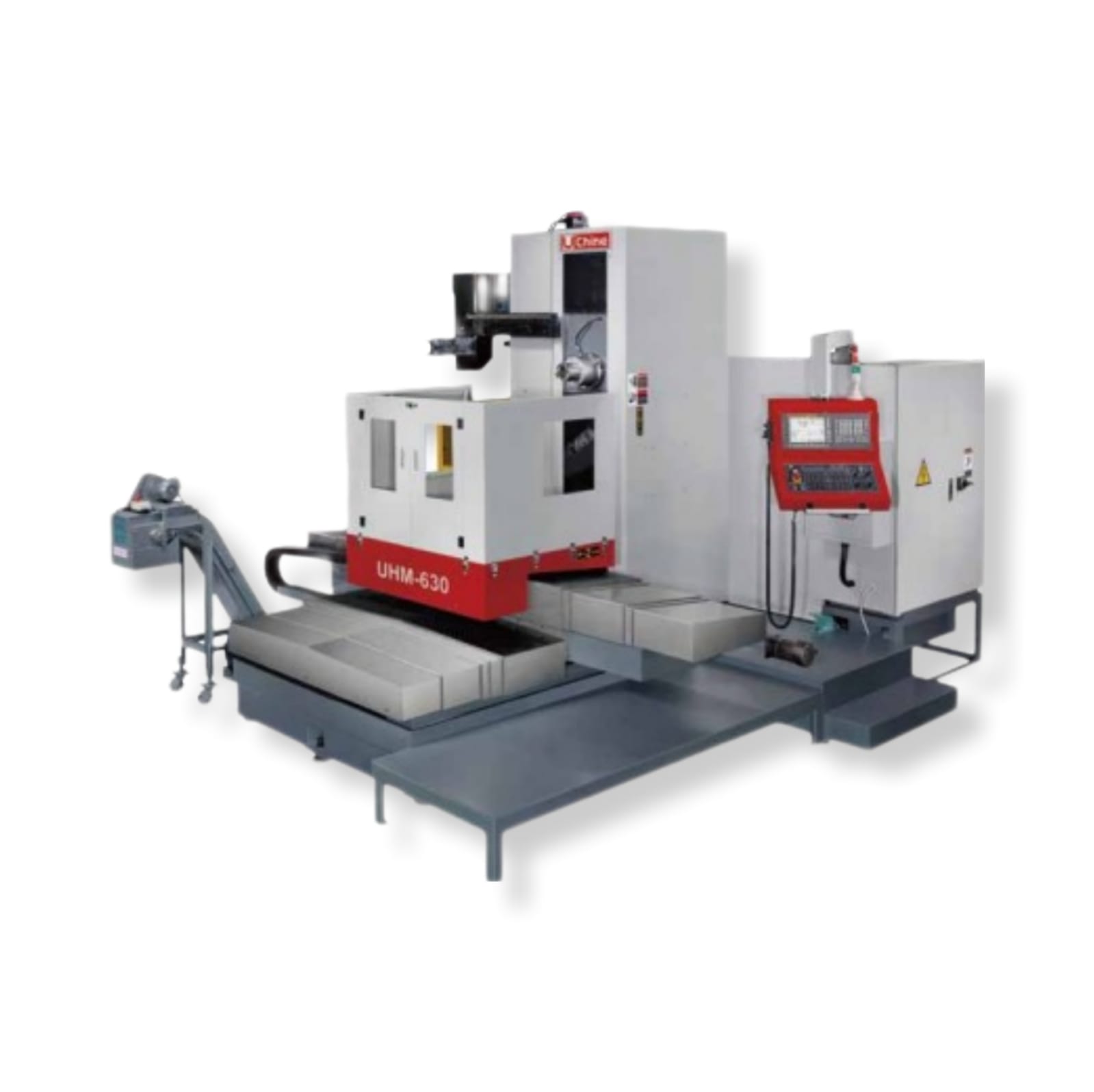

| MODEL | UNITS | UHM-630T | UHM-630TA | |
| TABLE | Table Size | mm | 630x630 | 630x630(APC) |
| T-Slots | mm | 20X5 | ||
| Maximum Workpiece Weight | kg | 2000(2500) | 2000 | |
| Indexing Degree | 1°(0.001°) | |||
| AXES | X Axis | mm | 1200(1600) | |
| Y Axis | mm | 1200(1350) | 1000(1200/1350) | |
| Z Axis | mm | 1000 | ||
| SPINDLE | Spindle Speed | rpm | 6000(8000) | |
| Taper | 7 / 24 taper ISO.50, BT-50 | |||
| DISTANCE | Distance Between Spindle and Table | mm | 0~1200(1350) | 0~1000(1200/1350) |
| Distance from Spindle Nose to Table | mm | 200~1200(130-1130) | ||
| Table Height | mm | 1060 | 1300 | |
| RAPID FEED | X/Y/Z Axis Rapid Traverse | m/min | 20/20/20 | |
| Minimum Setting | mm | 0.001 | ||
| Cutting Feed Rate | m/min | 1~5000 | ||
| MOTOR | Spindle Servo Motor-cont./ 30min. | kW | 11/15(15/18.5) | |
| X/Y/Z/B Servo Motors | kW | 4/7/4/4 | ||
| Lubrication Motor | kW | 0.15 | ||
| Hydraulic Pump | kW | 3.6 | ||
| Coolant Pump | kW | 1.62 | ||
| Chip Conveyor | kW | 0.25 | ||
| Oil Cooler Pump | kW | 3.6 | ||
| ATC | Tool Capacity | Pcs | 40(60) | |
| Tool Selection | Any Type | |||
| Max Tool (Diameter/Length) | mm | Ø125/Ø250(Without Adjacent Tool)/Length 400 | ||
| Max Tool Weight | kg | 18 (25) | ||
| OTHERS | Required Power | kVA | 40 | |
| Compressed Air | kg/cm² | 6 | ||
| Machine Weight | ton | 15 | 19 | |
