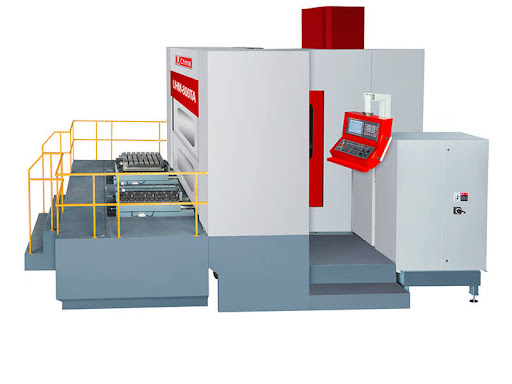

| MODEL | UNITS | UHM-1400T | ||
| TABLE | Table Size | mm | 1250x1250 | |
| T-Slots | mm | 24X7 | ||
| Maximum Workpiece Weight | kg | 8000 | ||
| Indexing Degree | 1°(0.001°) | |||
| AXES | X Axis | mm | 2000 (2500/3000) | |
| Y Axis | mm | 1350 | ||
| Z Axis | mm | 1200(1400) | ||
| SPINDLE | Spindle Speed | rpm | 6000(8000) | |
| Taper | 7 / 24 taper ISO.50, BT-50 | |||
| DISTANCE | Distance Between Spindle and Table | mm | 0~1350 | |
| Distance From Spindle Nose to Table | mm | 425~1625(355-1555) | ||
| Table Height | mm | 1350 | ||
| RAPID TRAVERSE | X/Y/Z Axis Rapid Traverse | m/min | 10 / 15 / 15 | |
| Minimum Setting | mm | 0.001 | ||
| Cutting Feedrate | m/min | 1~5000 | ||
| MOTOR | Spindle Servo Motor - cont./30min | kW | 15/18.5(22/26) | |
| X/Y/Z/B Servo Motors | kW | 7 / 7 / 4 / 7 | ||
| Lubrication Motor | kW | 0.15 | ||
| Hydraulic Pump | kW | 3.7 | ||
| Cooling Pump | kW | 1.62 | ||
| Chip Conveyor | kW | 0.25 | ||
| Oil Cooler Pump | kW | 3.6 | ||
| ATC | Tool Capacity | Pcs | 40(60) | |
| Tool Selection | Random | |||
| Max Tool (Diameter/Length) | mm | Ø125/Ø250(without adjacent tool)/Length 400 | ||
| Max Tool Weight | kg | 18 (25) | ||
| OTHERS | Required Power | kVA | 50 | |
| Compressed Air | kg/cm² | 6 | ||
| Machine Weight | ton | 22 | ||
