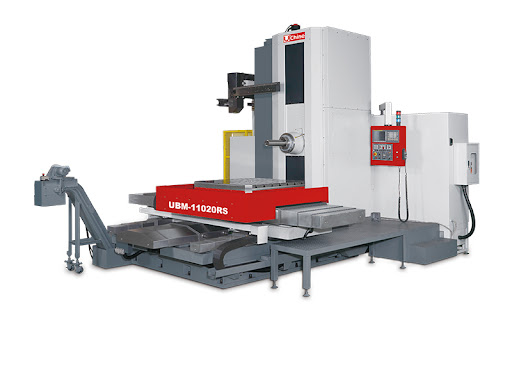

| MODEL | UNIT | UBM-11020RS | |
| TABLE | Table Size | mm | 1250x1250x0.001° |
| T-Slots | mm | 22x7 | |
| Maximum Load | kg | 5000 | |
| AXES | X Axis | mm | 2000 |
| Y Axis | mm | 1800 | |
| Z Axis | mm | 1400 | |
| W Axis | mm | 400(500) | |
| SPINDLE | Diameter | mm | Ø 110 |
| Spindle Speed | rpm | 10~2500(3000)(4000) | |
| Taper | 7/24 taper, ISO.50, BT-50 | ||
| DISTANCE | Between Spindle Center and Table | mm | 0~1800 |
| Between Spindle Nose and Table | mm | 90~1890(-10~1890) | |
| Distance Between Table Surface and Floor | mm | 1350 | |
| RAPID FEED | X/Y/Z Rapid Movements | m/min | 12 |
| W Rapid Movement | m/min | 10 | |
| Minimum Setting | mm/min | 0.001 | |
| Cutting Feed | mm/min | 1~5000 | |
| MOTOR | Spindle Servo Motor - cont./30min | kW | 15/18.5(22/26) |
| Axis Motors X / Y / Z / W / B | kW | 4/4/4/4/7 | |
| Lubrication Motor | kW | 0.15 | |
| Hydraulic Pump | kW | 2.25 | |
| Cooling Pump | kW | 1.17 | |
| Chip Conveyor Motor | kW | 0.2 | |
| Oil Cooling Pump | kW | 0.75 | |
| ATC | Tool Capacity | pieces | 40(60) |
| Tool Selection | Absolute | ||
| Tool Change Time | sec | 15 | |
| Max Tool Diameter / Length | mm | Ø 125/ Ø 250 (Without Adjacent Tool) / Length 400 | |
| Max Tool Weight | kg | 25 | |
| COOLING & LUBRICATION | Coolant Tank Capacity | L | 400 |
| Hydraulic Tank Capacity | L | 80 | |
| Lubrication Tank Capacity | L | 8 | |
| GENERAL | Power | kVA | 45 |
| Air Pressure | kg/cm² | 6 | |
