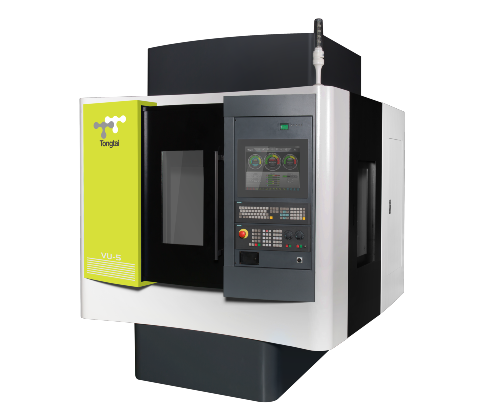

| Section | Specification | Unit | VU-5 |
| TABLE | Table Size | mm | 600 X 400 |
| Max Load Capacity | kg | 250 | |
| Table Height | mm | 850 | |
| T-Slots | mm | 18 X 3 | |
| Spindle Nose to Table Distance | mm | 200-500 | |
| SPINDLE | Spindle Taper | BBT30 | |
| Spindle Speed | rpm | 20,000 | |
| AXES | X Axis Travel | mm | 510 |
| Y Axis Travel | mm | 400 | |
| Z Axis Travel | mm | 350 | |
| Rapid Traverse Rates | m/min | 48 / 48 / 48 | |
| Cutting Feed Rate | mm/min | 1-20,000 | |
| ATC | Tool Capacity | pcs | 20 |
| Max Tool Diameter | mm | Ø68 | |
| Max Tool Length | mm | 200 | |
| Max Tool Weight | kg | 3 | |
| MOTOR | Spindle Motor Power (S6 50%) | kW | 3.7 |
| Servo Motor X/Y/Z | kW | 1.8 / 1.8 / 1.8 | |
| Coolant Motor | kW | 0.19 | |
| MACHINE SIZE | Width x Length | mm | 1,984 X 2,300 |
| Height | mm | 2,755 | |
| Net Weight | kg | 2,900 |
