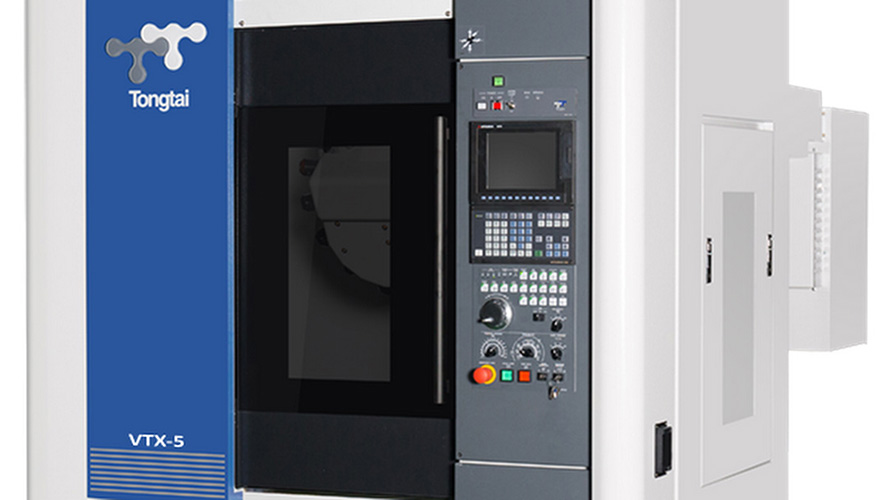

| Section | Specification | Unit | VTX-5 |
|---|---|---|---|
| TABLE | Table Size | mm | 600 x 400 |
| Max Load Weight | kg | 250 | |
| Table Height | mm | 850 | |
| T-Slots | mm | 18 x 3 | |
| SPINDLE | Spindle Taper | - | BT30 |
| Spindle Speed | rpm | 12,000 | |
| AXES | X Axis Travel | mm | 510 |
| Y Axis Travel | mm | 400 | |
| Z Axis Travel | mm | 300 | |
| Spindle to Table Distance | mm | 200 | |
| Rapid Feed Rate | m/min | 60 / 60 / 60 | |
| Cutting Feed Rate | mm/min | 1 - 20,000 | |
| ATC | Tool Holder | - | BBT-30 |
| Tool Capacity | pcs | 16 (21) | |
| Max Tool Diameter | mm | Ø80 | |
| Max Tool Length | mm | 200 | |
| Max Tool Weight | kg | 3 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 13 / 3.7 |
| Servo Motor X/Y/Z | kW | 1.8 / 1.8 / 3 | |
| MACHINE SIZE | Width x Length | mm | 1,700 x 2,600 |
| Height | mm | 2,700 | |
| Net Weight | kg | 2,850 |
