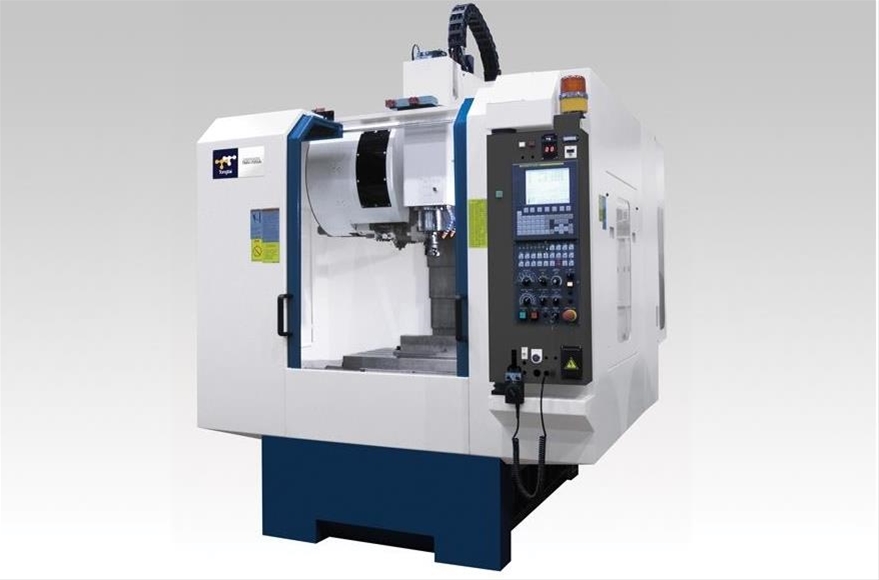

| Section | Feature | Unit | TMV-720A |
|---|---|---|---|
| TABLE | Table Size | mm | 800 x 480 |
| Max. Load Capacity | kg | 500 | |
| Table Height | mm | 900 | |
| T-Slots | mm | 18 x 5 | |
| Distance from Spindle Nose to Table | mm | 100 - 630 | |
| SPINDLE | Spindle Taper | - | BT40 |
| Spindle Speed | rpm | 8000 (10,000) | |
| AXES | X Axis Travel | mm | 720 |
| Y Axis Travel | mm | 480 | |
| Z Axis Travel | mm | 530 | |
| Rapid Traverse (X/Y/Z) | m/min | 48 / 48 / 48 | |
| Cutting Feed Rate | mm/min | 1 - 10,000 | |
| ATC | Tool Capacity | pcs | 24 |
| Max. Tool Diameter | mm | Ø80 | |
| Max. Tool Length | mm | 250 | |
| Max. Tool Weight | kg | 7 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 7.5 / 5.5 |
| Servo Motor X/Y/Z | kW | 1.8 / 1.8 / 3.0 | |
| Coolant Motor | kW | 0.55 | |
| MACHINE SIZE | Width x Length | mm | 2000 x 2740 |
| Height | mm | 2800 | |
| Net Weight | kg | 4400 |
