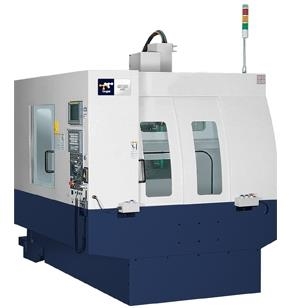

| Section | Specification | Unit | TMV-510T+APC |
|---|---|---|---|
| TABLE | Table Size | mm | 600 x 360 |
| Max Load Capacity | kg | 100 x 2 | |
| Table Height | mm | 920 | |
| T-Slots | mm | 18 x 3 | |
| Distance from Spindle Nose to Table | mm | 200-500 | |
| SPINDLE | Spindle Taper | - | BT30 |
| Spindle Speed | rpm | 8,000 | |
| AXES | X Axis Travel | mm | 510 |
| Y Axis Travel | mm | 360 | |
| Z Axis Travel | mm | 435 | |
| Rapid Traverse Rates | m/min | 40 / 40 / 48 | |
| Cutting Feedrate | mm/min | 1-10,000 | |
| ATC | Tool Capacity | pcs | 20 |
| Max Tool Diameter | mm | Ø68 | |
| Max Tool Length | mm | 200 | |
| Max Tool Weight | kg | 3 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 5.5 / 3.7 |
| Servo Motor X/Y/Z | kW | 1.6 / 1.6 / 1.6 | |
| Coolant Motor | kW | 0.185 | |
| MACHINE SIZE | Width x Length | mm | 3,050 x 2,000 |
| Height | mm | 2,450 | |
| Net Weight | kg | 4,300 |
