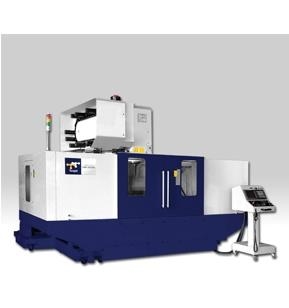

| Section | Specification | Unit | TMV-1600A |
|---|---|---|---|
| TABLE | Table Size | mm | 1700 x 850 |
| Max Load Weight | kg | 2000 | |
| Table Height | mm | 950 | |
| T-Slots | mm | 18 x 6 | |
| Distance Spindle Nose to Table | mm | 200 - 900 | |
| SPINDLE | Spindle Taper | - | BT50 |
| Spindle Speed | rpm | 3500 (6000) | |
| AXES | X Axis Travel | mm | 1600 |
| Y Axis Travel | mm | 800 | |
| Z Axis Travel | mm | 700 | |
| Rapid Feedrates | m/min | 15 / 15 / 12 | |
| Cutting Feedrate | mm/min | 1 - 5000 | |
| ATC | Tool Capacity | pcs | 32 |
| Max Tool Diameter | mm | Ø110 / 200 | |
| Max Tool Length | mm | 300 | |
| Max Tool Weight | kg | 15 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 18.5 / 15 |
| Servo Motor X/Y/Z | kw | 4.0 / 4.0 / 7.0 | |
| Cooling Motor | kw | 0.37 | |
| MACHINE SIZE | Width x Length | mm | 3440 x 4250 |
| Height | mm | 3290 | |
| Net Weight | kg | 15000 |
