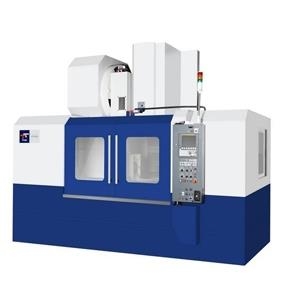

| Section | Specification | Unit | TMV-1500A (BT-40) | TMV-1500A (BT-50) |
|---|---|---|---|---|
| TABLE | Table Size | mm | 1600 x 762 | 1600 x 762 |
| Max Load Weight | kg | 1869 | 1869 | |
| Table Height | mm | 950 | 950 | |
| T-Slots | mm | 18 x 5 | 18 x 5 | |
| Distance Spindle Nose to Table | mm | 100 - 810 | 100 - 810 | |
| SPINDLE | Spindle Taper | - | BT40 | BT50 |
| Spindle Speed | rpm | 8000 (10000) | 3500 (6000) | |
| AXES | X Axis Travel | mm | 1525 | 1525 |
| Y Axis Travel | mm | 762 | 762 | |
| Z Axis Travel | mm | 710 | 710 | |
| Rapid Feedrates | m/min | 18 / 18 / 18 | 18 / 18 / 18 | |
| Cutting Feedrate | mm/min | 1 - 10000 | 1 - 10000 | |
| ATC | Tool Capacity | pcs | 24 | 24 |
| Max Tool Diameter | mm | Ø89 / 125 | Ø110 / 200 | |
| Max Tool Length | mm | 250 | 300 | |
| Max Tool Weight | kg | 7 | 7 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 15 / 11 | 15 / 11 |
| Servo Motor X/Y/Z | kw | 3.0 / 4.0 / 7.0 | 3.0 / 4.0 / 7.0 | |
| Cooling Motor | kw | 0.37 | 0.37 | |
| MACHINE SIZE | Width x Length | mm | 4000 x 3600 | 4000 x 3600 |
| Height | mm | 3520 | 3520 | |
| Net Weight | kg | 13000 | 13500 |
