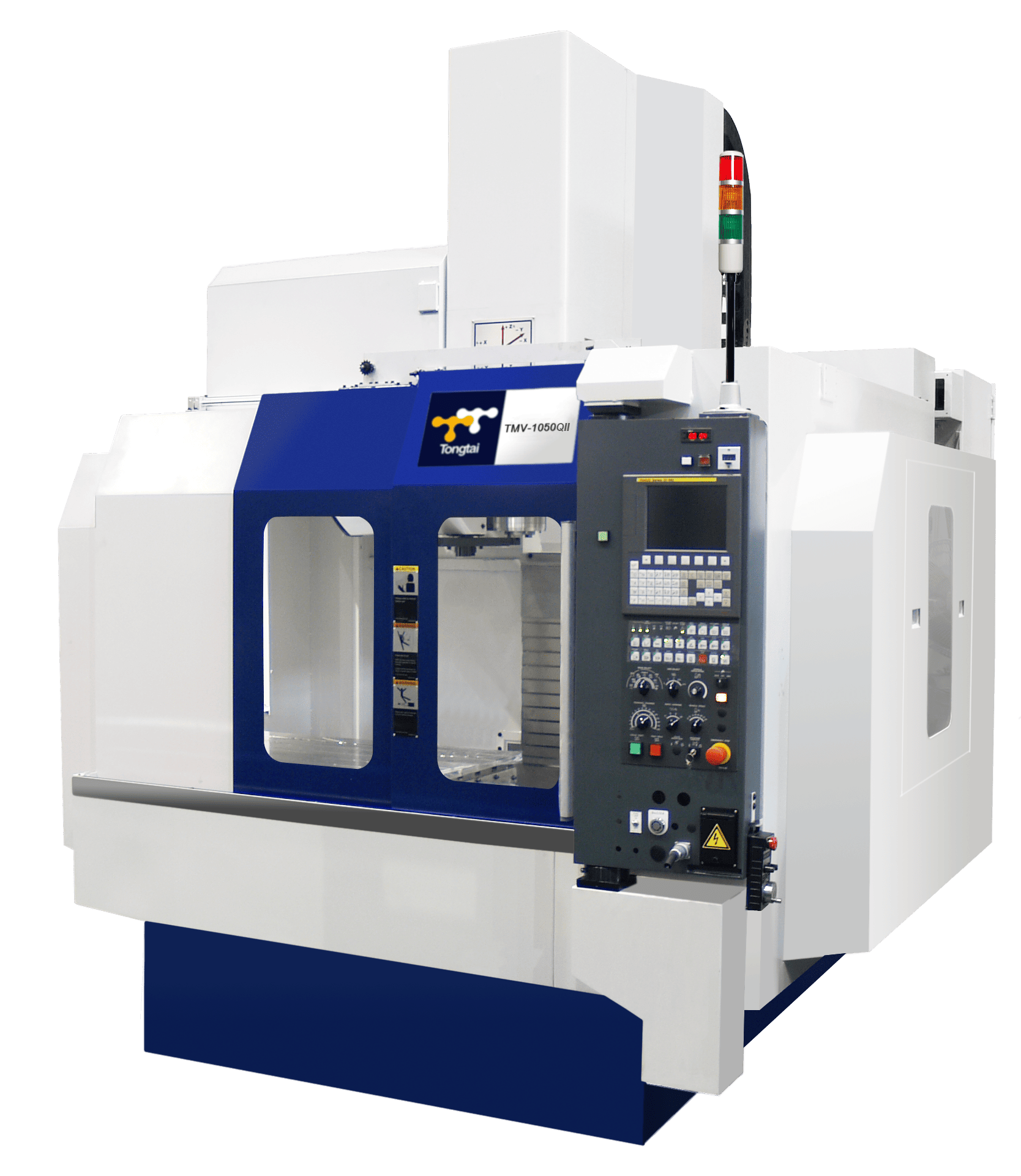

| Section | Specification | Unit | TMV-1050QII |
|---|---|---|---|
| TABLE | Table Size | mm | 1100 x 600 |
| Max Load Capacity | kg | 800 | |
| Table Height | mm | 900 | |
| T-Slots | mm | 18 x 5 | |
| Distance Spindle Nose to Table | mm | 100 – 630 | |
| SPINDLE | Spindle Taper | BT40 | |
| Spindle Speed | rpm | 8000 (10,000) | |
| AXES | X Axis Travel | mm | 1050 |
| Y Axis Travel | mm | 600 | |
| Z Axis Travel | mm | 530 | |
| Rapid Feed | m/min | 48 / 48 / 48 | |
| Cutting Feed | mm/min | 1 – 12,000 | |
| ATC | Tool Capacity | pcs | 24 |
| Max Tool Diameter | mm | Ø89 | |
| Max Tool Length | mm | 250 | |
| Max Tool Weight | kg | 7 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 15 / 11 |
| Servo Motor X/Y/Z | kw | 4.5 / 4.5 / 5.5 | |
| Coolant Pump Motor | kw | 0.37 | |
| MACHINE SIZE | Width x Length | mm | 2400 x 3000 |
| Height | mm | 2825 | |
| Net Weight | kg | 7000 |
