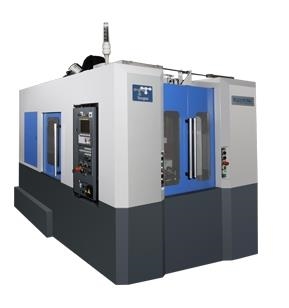

| Section | Specification | Unit | QVM-610AII |
|---|---|---|---|
| TABLE | Table Size | mm | 700 x 460 |
| Max Load Capacity | kg | 400 x 2 | |
| Table Height | mm | 950 | |
| T-Slots | mm | 18 x 4 | |
| Distance Spindle Nose to Table | mm | 180 - 690 | |
| SPINDLE | Spindle Taper | BT-40 | |
| Spindle Speed | rpm | 8000 (10,000) | |
| AXES | X Axis Travel | mm | 610 |
| Y Axis Travel | mm | 410 | |
| Z Axis Travel | mm | 510 | |
| Rapid Traverse Rates | m/min | 36 / 36 / 30 | |
| Cutting Feed Rate | mm/min | 1 - 10,000 | |
| ATC | Tool Capacity | pcs | 24 |
| Max Tool Diameter | mm | Ø89 | |
| Max Tool Length | mm | 250 | |
| Max Tool Weight | kg | 7 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 9 |
| Servo Motor X/Y/Z | kW | 3.0 / 3.0 / 4.0 | |
| Coolant Motor | kW | 0.37 / 0.55 | |
| MACHINE SIZE | Width x Length | mm | 2440 x 4610 |
| Height | mm | 2880 | |
| Net Weight | kg | 9000 |
