Our goal is to provide manufacturers with the most suitable solutions while acting in an environmentally conscious manner, valuing human labor, and growing sustainably in strong harmony with our business partners. Thanks to the long-term and trust-based collaborations we have established with our suppliers, we aim to add value both to our country and to our company.

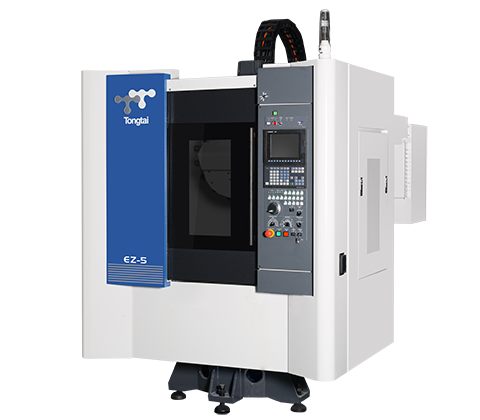

| Section | Specification | Unit | EZ-5 |
|---|---|---|---|
| TABLE | Table Size | mm | 600 X 400 |
| Max Load Capacity | kg | 250 | |
| Table Height | mm | 850 | |
| T-Slots | mm | 18 X 3 | |
| Distance from Spindle Nose to Table | mm | 200 - 500 | |
| SPINDLE | Spindle Taper | BBT30 | |
| Spindle Speed | rpm | 12,000 (20,000 / 24,000) | |
| AXES | X Axis Travel | mm | 510 |
| Y Axis Travel | mm | 400 | |
| Z Axis Travel | mm | 300 | |
| Rapid Traverse Rates | m/min | 60 / 60 / 60 | |
| Cutting Feed Rate | mm/min | 1 - 20,000 | |
| ATC | Tool Capacity | pcs | 16 (21) |
| Max Tool Diameter | mm | Ø80 | |
| Max Tool Length | mm | 200 | |
| Max Tool Weight | kg | 3 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 3.7 / 5.5 |
| Servo Motor X/Y/Z | kW | 1.5 / 2.2 / 2.2 | |
| Cooling Motor | kW | 0.18 | |
| MACHINE SIZE | Width X Length | mm | 1,700 X 2,600 |
| Height | mm | 2,700 | |
| Net Weight | kg | 2,850 |
