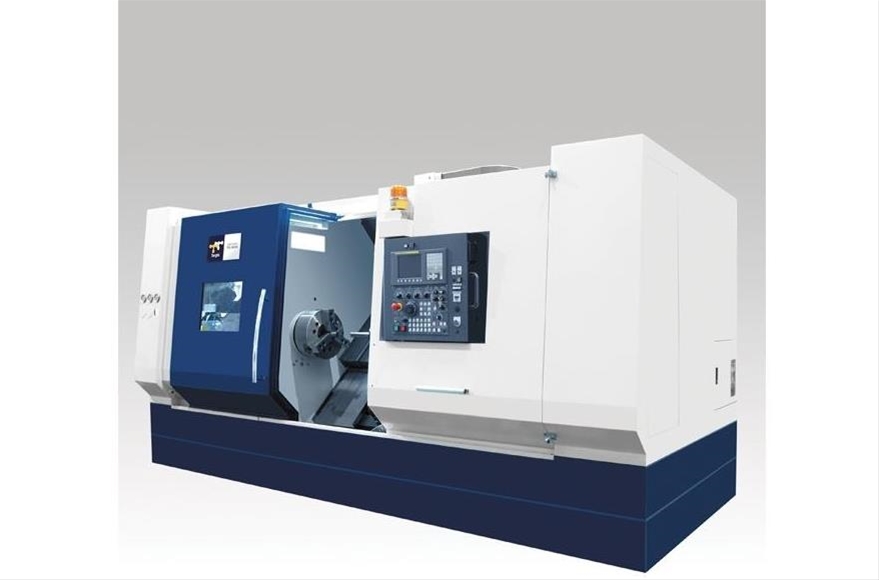

| Section | Feature | Unit | TNL-160A |
| TURNING CAPACITY | Max. Swing Diameter | mm | Ø700 |
| Max. Turning Diameter | mm | Ø530 | |
| Max. Turning Length | mm | 975 ( 1,575 / 1,975 ) | |
| SPINDLE | Spindle Taper | A2-8 | |
| Spindle Speed | rpm | 2,500 | |
| Chuck Size | inch | 12" | |
| Spindle Bore | mm | Ø105 | |
| Spindle Bearing Diameter | mm | Ø160 | |
| Bar Capacity | mm | Ø90 | |
| TURRET | Number of Tool Stations | pcs | 12 |
| External Tool Section | mm | 25 X 25 | |
| Internal Tool Section | mm | Ø40 | |
| AXES | X Axis Travel | mm | 275 |
| Z Axis Travel | mm | 1,000 ( 1,600 / 2,000 ) | |
| Rapid Traverse | m/min | 18 / 20 | |
| Cutting Feed | mm/rev | 0.001-5.000 | |
| TAILSTOCK | Tailstock Travel | mm | 1,000 ( 1,600 / 2,000 ) / 100 |
| Tailstock Taper | MT5 | ||
| Quill Diameter | mm | Ø90 | |
| MOTOR | Motor (50% ED) + Gearbox | kw | - |
| Motor (50% ED) | kw | 26 / 22 | |
| X/Z Axis Motor Power | kw | 3.0 / 4.0 | |
| Coolant Motor | kw | 0.75 | |
| Hydraulic Motor | kw | 2.2 | |
| MACHINE DIMENSIONS | Width x Length | mm | 3,430 ( 4,290 / 4,790 ) X 1,990 |
| Height | mm | 2,030 | |
| Weight | kg | 7,200 ( 7,700 / 7,800 ) |
