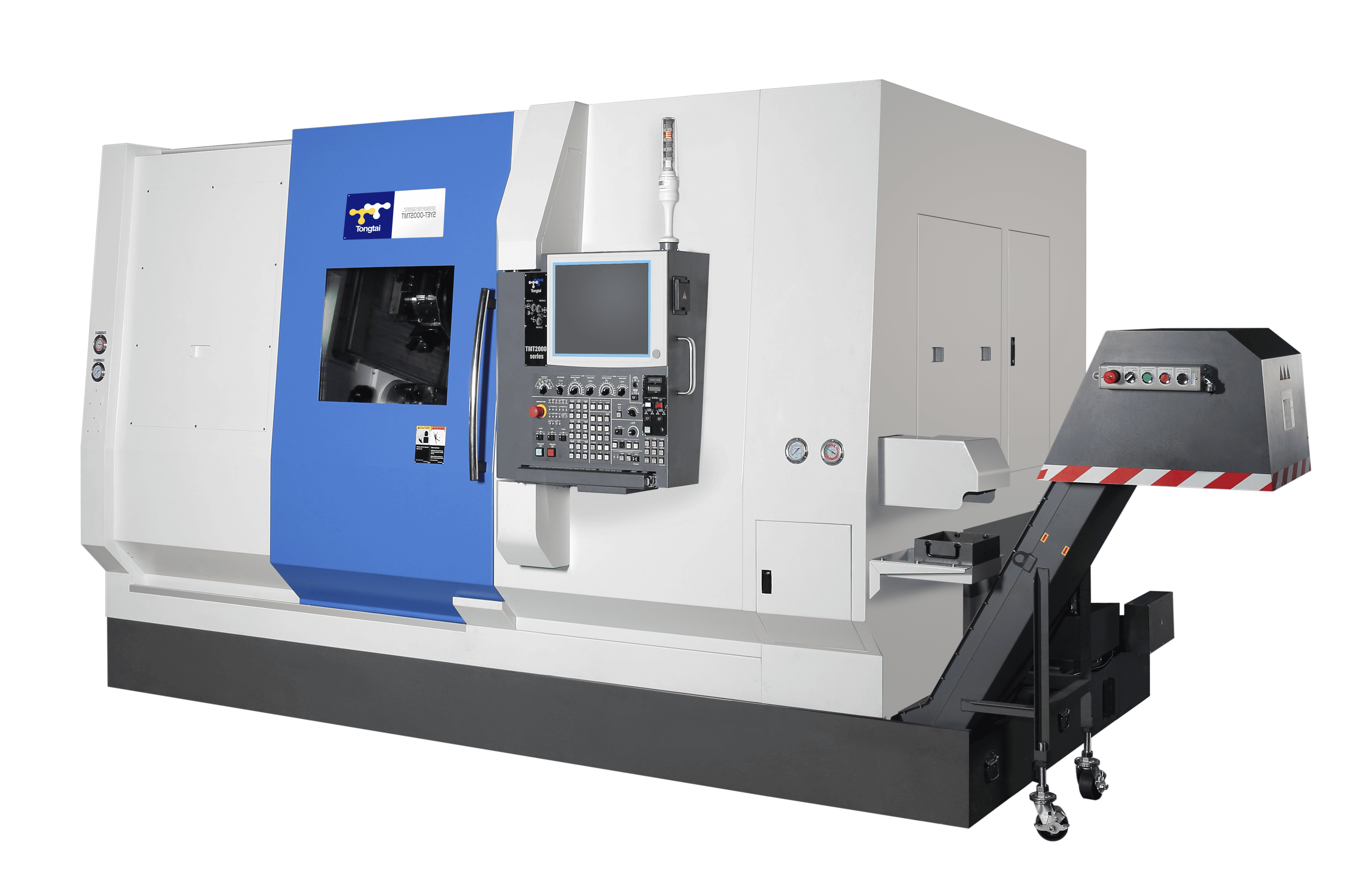

| Section | Specification | Unit | TMT-2000-T2Y1 | TMT-2000-T2Y2 | TMT-2000-T3Y2 | TMT-2000-T3Y3 |
|---|---|---|---|---|---|---|
| TURNING CAPACITY | Max. Swing Diameter | mm | Ø720 | Ø720 | ||
| Max. Turning Diameter Over Carriage | mm | Ø310 | Ø310 | |||
| Max. Turning Diameter | mm | Ø320 | Ø320 | |||
| Max. Turning Length | mm | 600 | 600 | |||
| SPINDLE | Spindle Taper | A2-6 | A2-6 | |||
| Spindle Speed | rpm | 4,500 | 4,500 | |||
| Chuck Diameter | inch | 8" | 8" | |||
| Spindle Bore | mm | Ø76 | Ø76 | |||
| Bar Capacity | mm | Ø65 | Ø65 | |||
| Spindle Bearing Diameter | mm | Ø100 | Ø100 | |||
| Spindle Center Height from Floor | mm | 1,300 | 1,300 | |||
| SUB-SPINDLE | Spindle Taper | A2-6 | A2-6 | |||
| Spindle Speed | rpm | 6,000 | 6,000 | |||
| Chuck Diameter | inch | 8" | 8" | |||
| Spindle Bore | mm | Ø62 | Ø62 | |||
| Bar Capacity | mm | Ø51 | Ø51 | |||
| Spindle Bearing Diameter | mm | Ø100 | Ø100 | |||
| POWER TURRET | Tool Interface | BMT-65 | BMT-65 | |||
| Tool Capacity | pcs | 12 x 2 | 12 x 3 | |||
| External / Internal Tool Size | mm | 25 x 25 / Ø40 | 25 x 25 / Ø40 | |||
| Max. Speed | rpm | 6,000 | 6,000 | |||
| Motor | kW | 5.5 | 5.5 | |||
| Max. Tool Diameter | mm | 20 / M16 | 20 / M16 | |||
| AXES | X1 / X2 / X3 Travel | mm | 205 / 205 / - | 205 / 205 / 205 | ||
| Y1 / Y2 / Y3 Travel | mm | ±51 / - / - | ±51 / +20-51 / - | ±51 / - / ±51 | ±51 / +20-51 / ±51 | |
| Z1 / Z2 / Z3 Travel | mm | 600 / 600 / - / 680 | 440 / 600 / 440 / 680 | |||
| X / Y / Z / B Rapid Traverse | m/min | 30 / 15 / 36 / 30 | 30 / 15 / 36 / 30 | |||
| MOTOR | Spindle Motor (50% ED) | kW | 15 | 15 | ||
| Sub-Spindle Motor (50% ED) | kW | 18.5 | 18.5 | |||
| X / Y / Z Servo Motor | kW | 4 / 3 / 4 / 3 | 4 / 3 / 4 / 3 | |||
| Coolant Motor | kW | 0.55 x 3 | 0.55 x 4 | |||
| MACHINE SIZE | Width x Depth | mm | 4,100 x 2,600 | 4,100 x 2,800 | 4,100 x 2,600 | 4,100 x 2,800 |
| Height | mm | 2,450 | 2,600 | 2,450 | 2,600 | |
| Machine Weight | kg | 8,200 | 8,500 | 9,000 | 10,000 | |
