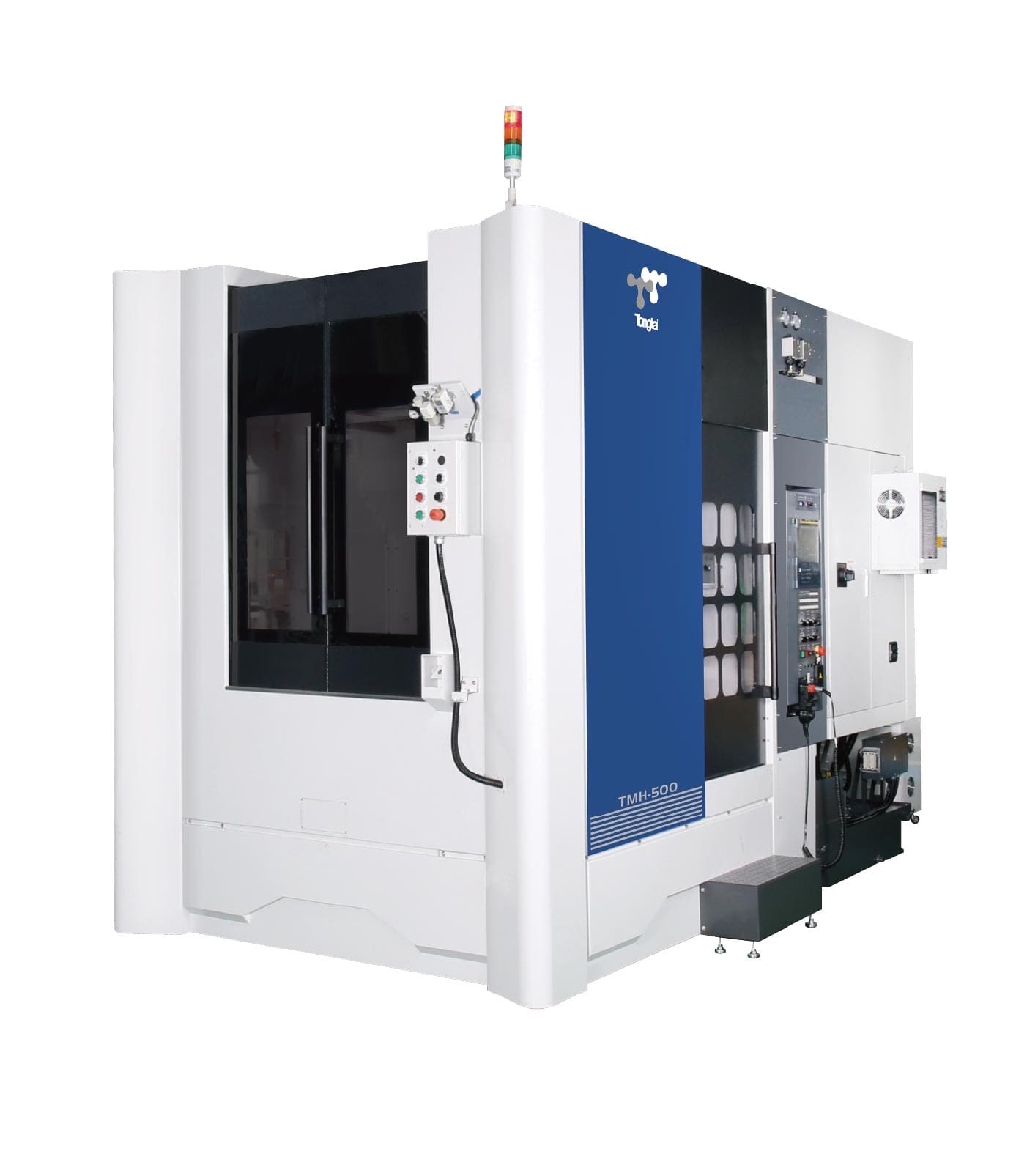

| Section | Specification | Unit | TMH-500 |
| TABLE | Table Size | mm | Ø500 |
| Max. Load Capacity | kg | 700 | |
| Table Height | mm | 1,180 | |
| Workpiece Size | mm | Ø700 X H700 | |
| B-Axis Angle | degree | 0.001 ( Opt. 1º ) | |
| SPINDLE | Spindle Taper | BT 40 | |
| Spindle Speed | rpm | 3,500 ( Opt. 6,000 ) | |
| Spindle Motor Power (50% ED) | kw | 15 / 11 | |
| AXES | X-Axis Travel | mm | 710 |
| Y-Axis Travel | mm | 600 | |
| Z-Axis Travel | mm | 600 | |
| Distance from Spindle Center to Table | mm | 140 - 740 | |
| Distance from Spindle Nose to Table | mm | 70 - 670 | |
| X/Y/Z Rapid Traverse Rates | m/min | 48 / 48 / 48 | |
| Cutting Feed Rate | mm/min | 1 - 10,000 | |
| ATC | Tool Capacity | pcs | 24 |
| Tool Holder | BT50 | ||
| Max. Tool Diameter (when adjacent tool absent) | mm | Ø110 | |
| Max. Tool Length | mm | 350 | |
| Max. Tool Weight | kg | 7 | |
| MACHINE GENERAL | Width x Length | mm | 3,645 X 2,000 |
| Height | mm | 3,120 | |
| Net Weight | kg | 9,500 |
