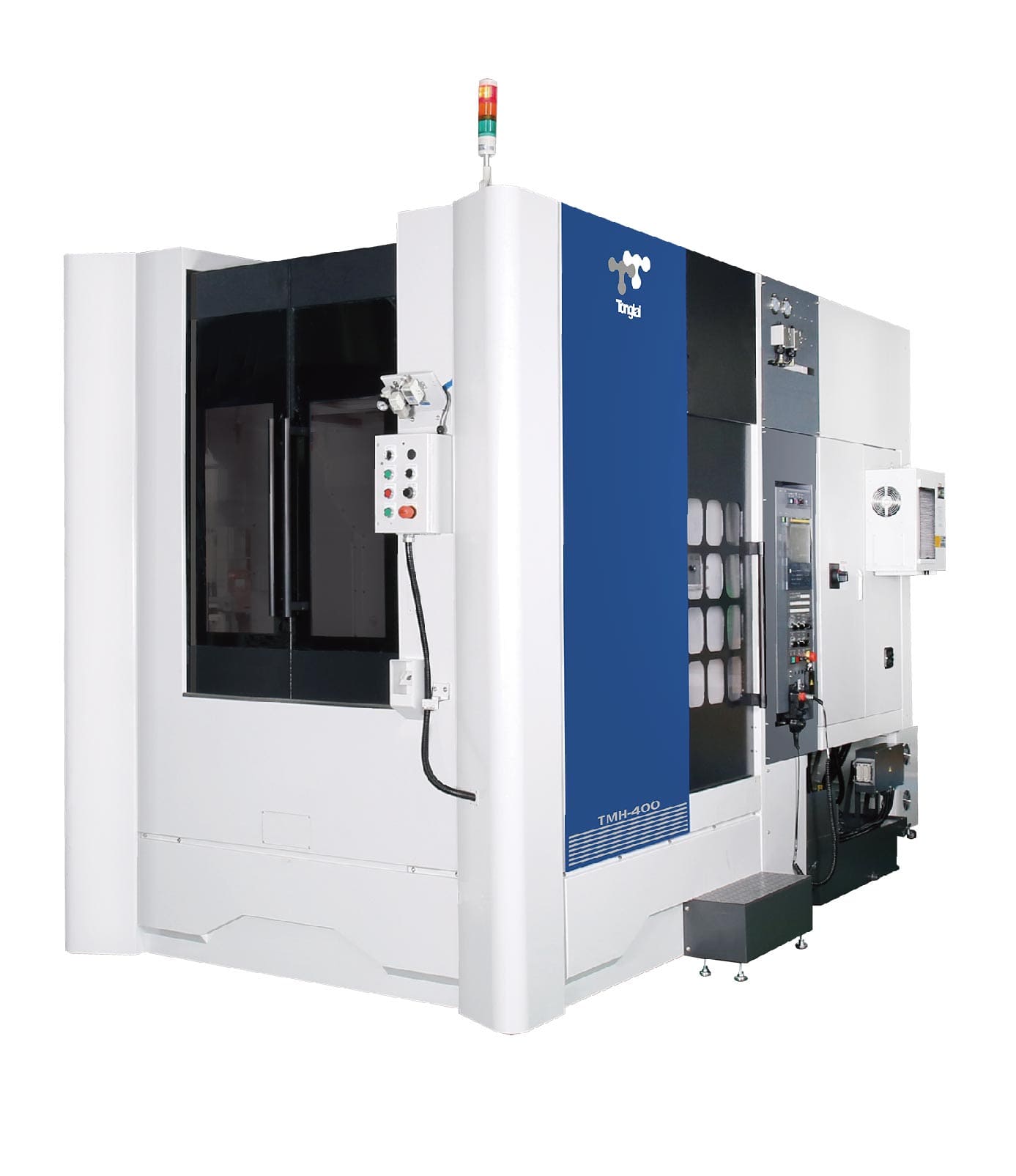

| Section | Specification | Unit | TMH-400 |
| TABLE | Table Size | mm | Ø400 |
| Max. Load Capacity | kg | 350 | |
| Table Height | mm | 1,150 | |
| Workpiece Size | mm | Ø510 X H630 | |
| B Axis Angle | degree | 0.001 ( Opt. 1º ) | |
| SPINDLE | Spindle Taper | BT 40 | |
| Spindle Speed | rpm | 8,000 ( Opt. 10,000 / 12,000 / 15,000 ) | |
| Spindle Motor Power (50% ED) | kw | 11 / 7.5 | |
| AXES | X Axis Travel | mm | 510 |
| Y Axis Travel | mm | 510 | |
| Z Axis Travel | mm | 510 | |
| Distance Spindle Center to Table | mm | 180 - 690 | |
| Distance Spindle Nose to Table | mm | 50 - 560 | |
| X/Y/Z Rapid Traverse Rates | m/min | 36 / 36 / 36 | |
| Cutting Feed Rate | mm/rev. | 1 - 10,000 | |
| ATC | Tool Capacity | 24 ( Opt. 30 ) | |
| Tool Holder | BT40 | ||
| Max. Tool Diameter (without adjacent tool) | Ø89 ( Opt. Ø75 ) | ||
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 7 | |
| MACHINE GENERAL | Width x Length | mm | 3,200 X 1,700 |
| Height | mm | 2,790 | |
| Net Weight | kg | 6,500 |
