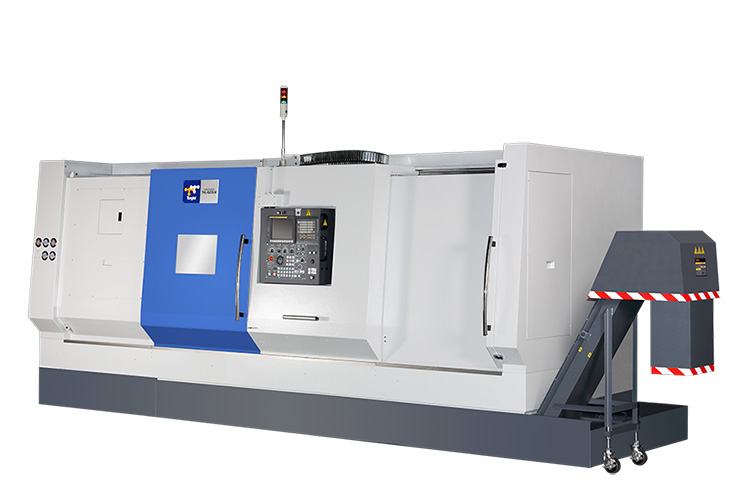

| Section | Specification | Unit | THL-620 | THL-620L | THL-620XL | ||
|---|---|---|---|---|---|---|---|
| TURNING CAPACITY | Turning Capacity | mm | Ø780 | ||||
| Max Turning Diameter | mm | Ø620 | |||||
| Max Turning Length | mm | Ø1,100 | Ø1,900 | Ø2,900 | |||
| SPINDLE | Spindle Taper | A2-11 | |||||
| Spindle Speed | rpm | 2,500 | |||||
| Chuck Size | inch | 15" | |||||
| Spindle Bore | mm | Ø105 | |||||
| Spindle Bearing Diameter | mm | Ø160 | |||||
| Bar Capacity | mm | Ø90 | |||||
| TURRET | Number of Tool Stations | 12 | |||||
| OD Tool Holder | mm | 32 x 32 | |||||
| ID Tool Holder | mm | Ø50 | |||||
| AXES | X Axis Travel | mm | 365 | 365 | 365 | ||
| Z Axis Travel | mm | 1,200 | 2,000 | 3,000 | |||
| Rapid Feed | m/min | 20 / 20 | |||||
| Cutting Feed | mm/rev | 0.001 – 5.000 | |||||
| TAILSTOCK | Tailstock Stroke | 990 / 150 | 1,790 / 150 | 2,790 / 150 | |||
| Tailstock Taper | MT5 | ||||||
| Quill Diameter | mm | Ø150 | |||||
| MOTOR | Main Motor (50% ED) + Gearbox | kw | 37 / 30 | ||||
| Main Motor (50% ED) | kw | 37 / 30 (opt.) | |||||
| X / Z Axis Motor Power | kw | 4.0 / 7.0 | |||||
| Coolant Pump Motor | kw | 1.1 x 1 / 1.3 x 1 | |||||
| Hydraulic Motor | kw | 2.2 | |||||
| MACHINE SIZE | Width x Length | mm | 4,350 x 2,100 | 5,500 x 2,100 | 6,500 x 2,150 | ||
| Height | mm | 2,280 | |||||
| Machine Weight | kg | 8,500 | 12,000 | 17,000 | |||
