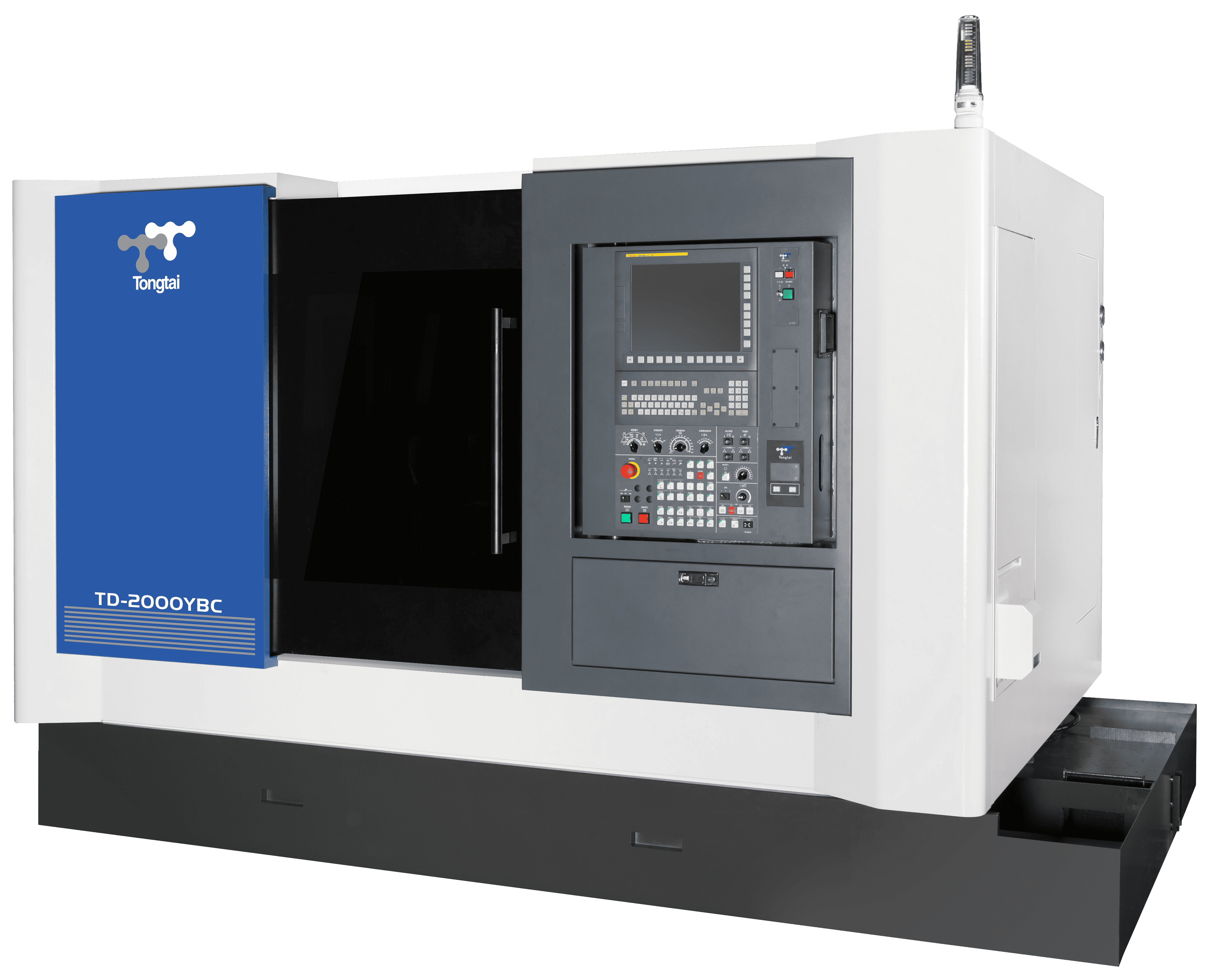

| Section | Specification | Unit | TD-2000Y | TD-2000YBC | ||
|---|---|---|---|---|---|---|
| TURNING CAPACITY | Spindle Bearing Diameter | mm | Ø100 | |||
| Max. Swing Diameter | mm | Ø700 | ||||
| Max. Swing Over Carriage | mm | Ø310 | ||||
| Max. Turning Diameter | mm | Ø360 | ||||
| Max. Turning Length | mm | 530 | ||||
| SPINDLE | Spindle Taper | A2-6 | ||||
| Spindle Speed | rpm | 4,500 | ||||
| Chuck Size | 8" | |||||
| Spindle Bore | mm | Ø62 | ||||
| Bar Capacity | mm | Ø51 | ||||
| C-Axis Indexing | degree | 0.001° | ||||
| SUB-SPINDLE | Spindle Speed | rpm | — | 5,000 | ||
| Spindle Taper | — | A2-5 | ||||
| Chuck Size | mm | — | 6" | |||
| Spindle Bore | mm | — | Ø35 | |||
| Spindle Bearing Diameter | — | Ø90 | ||||
| C-Axis Indexing | — | 0.001° | ||||
| LIVE TOOL POWER TURRET | Turret Type | BMT-65 | ||||
| Tool Stations | pcs | 12 | ||||
| External Tool Holder | mm | 25 x 25 | ||||
| Internal Tool Holder | mm | Ø40 | ||||
| Max. Speed | rpm | 6,000 | ||||
| Motor | kW | 5.5 / 3.7 | ||||
| Max. Tool Diameter | mm | Ø20 / M16 | ||||
| AXES | X / Y / Z / B Rapid Traverse | m/min | 30 / 15 / 30 / — | 30 / 15 / 30 / 30 | ||
| X / Y / Z / B Travel | mm | 230 / ±51 / 600 / — | 230 / ±51 / 600 / 630 | |||
| Cutting Feedrate | mm/rev | 0.001 – 5.000 | ||||
| HYDRAULIC TAILSTOCK | Tailstock Travel | mm | 600 | — | ||
| Tailstock Taper | type | MT4 | — | |||
| Center Diameter | mm | Ø100 | — | |||
| SERVO TAILSTOCK (OPT.) | Tailstock Travel | mm | 600 | — | ||
| Center Travel | 80 | |||||
| Tailstock Taper | mm | MT4 | — | |||
| Center Diameter | mm | Ø100 | — | |||
| MOTOR | Spindle Motor (50% ED) | kW | 18.5 / 15 / 11 | |||
| Sub-Spindle Motor (50% ED) | kW | — | 7.5 / 5.5 | |||
| X / Y / Z / B Axis Motor Power | kW | 4.5 / 2.7 / 4.5 / — | 4.5 / 2.7 / 4.5 / 2.7 | |||
| Hydraulic Motor | kW | 1.5 | ||||
| Coolant Motor | kW | 0.55 | ||||
| Hydraulic Tank Capacity | liters | 30 | ||||
| Coolant Tank Capacity | liters | 400 | ||||
| MACHINE SIZE | Width | mm | 3,290 | |||
| Depth | mm | 2,180 | ||||
| Height | mm | 2,337 | ||||
| Machine Weight | kg | 5,900 | 6,400 | |||
