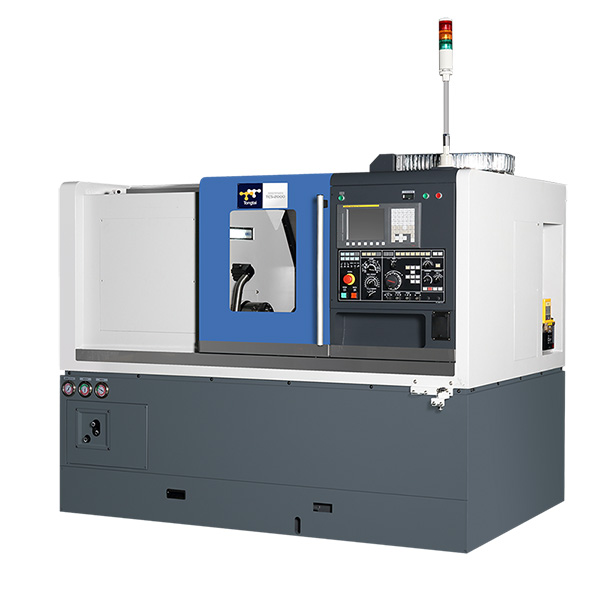

| Section | Specification | Unit | TCS-2500 | TCS-2500L | TCS-2500M | TCS-2500LM |
|---|---|---|---|---|---|---|
| TURNING CAPACITY | Spindle Bearing Diameter | mm | Ø130 | |||
| Max. Swing Diameter | mm | Ø520 | ||||
| Max. Turning Diameter | mm | Ø320 | ||||
| Max. Turning Length | mm | 400 | 600 | 300 | 500 | |
| Bar Capacity | mm | Ø74 | ||||
| Standard Chuck Size | inch | 10″ | ||||
| SPINDLE | Spindle Speed | rpm | 3,500 | |||
| Spindle Taper | A2-8 | |||||
| Spindle Motor | kW | 15 / 11 | ||||
| Spindle Bore | mm | Ø86 | ||||
| TURRET | Tool Stations | pcs | 12 | |||
| External Tool Size | mm | 25 x 25 | ||||
| Internal Tool Size | mm | Ø32 / Ø40 | ||||
| Drive System | Servo | |||||
| LIVE TOOL POWER TURRET | Tool Stations | pcs | 12 | |||
| Motor | kW | 5.5 / 3.7 | ||||
| External Tool Size | mm | 25 x 25 | ||||
| Internal Tool Size | mm | Ø40 | ||||
| Max. Speed | rpm | 6,000 | ||||
| AXES | X/Z Rapid Traverse | m/min | 30 / 30 | |||
| X/Z Servo Motor | kW | 1.8 / 1.8 | ||||
| X/Z Axis Travel | mm | 170 / 400 | 170 / 600 | 200 / 400 | 200 / 600 | |
| TAILSTOCK | Tailstock Stroke | mm | 275 / 100 | 500 / 100 | 275 / 100 | 500 / 100 |
| Tailstock Taper | MT5 | |||||
| GENERAL | Hydraulic Tank Capacity | liter | 30 | |||
| Coolant Tank Capacity | liter | 95 | ||||
| Coolant Motor | kW | 0.55 | ||||
| Width x Depth | mm | 3,370 x 2,150 | 3,630 x 2,150 | 3,370 x 2,150 | 3,630 x 2,150 | |
| Height | mm | 2,480 | ||||
| Machine Weight | kg | 3,500 | 4,100 | 3,600 | 4,200 | |
