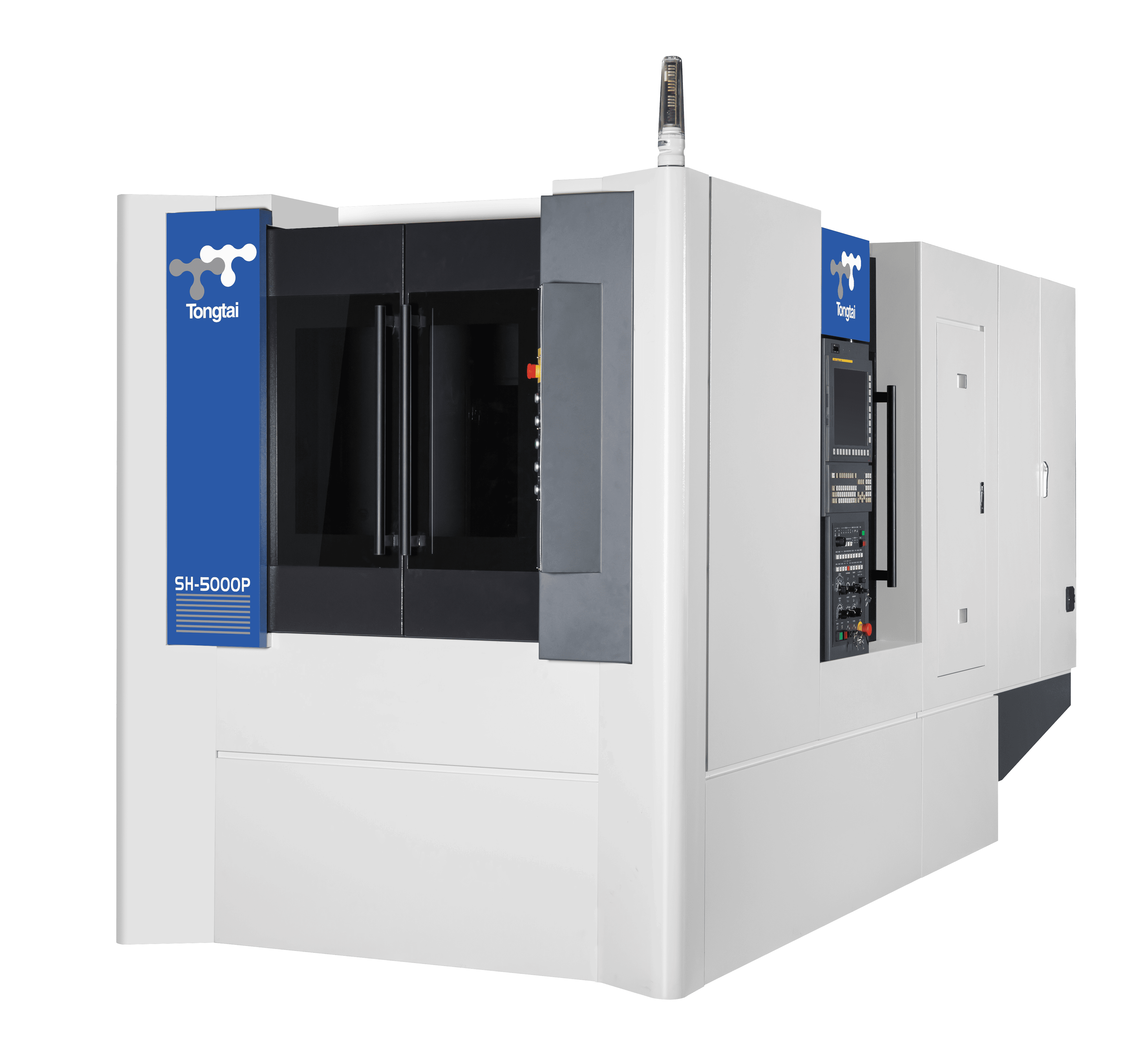

| Section | Specification | Unit | SH-5000P |
| TABLE | Table Size | mm | 500 X 500 |
| Max. Load Capacity | kg | 500 | |
| Table Height | mm | 1,200 | |
| Workpiece Size | mm | Ø800 x 1,000 | |
| B-Axis Angle | degree | 0.001º | |
| SPINDLE | Spindle Taper | 7/24 Taper No.40 | |
| Spindle Speed | rpm | 15,000 | |
| AXES | X-Axis Travel | mm | 730 |
| Y-Axis Travel | mm | 730 | |
| Z-Axis Travel | mm | 830 | |
| Spindle Center to Table Distance | mm | 80 - 810 | |
| Spindle Nose to Table Distance | mm | 70 - 900 | |
| X/Y/Z Rapid Traverse | m/min | 60 / 60 / 60 | |
| Cutting Feedrate | mm/min | 1 - 20,000 | |
| ATC | Tool Capacity | 40 ( Opt. 60 ) | |
| Tool Holder | BT-40 ( BBT-40 ) | ||
| Max. Tool Diameter | Ø75 | ||
| Max. Tool Length | mm | 550 | |
| Max. Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 37 / 26 / 18.5 |
| X/Y/Z Servo Motor | kw | 5.5 / 5.5 / 4.5 | |
| Cooling Motor | kw | 1.5 x 5 | |
| MACHINE GENERAL | Width x Length | mm | 2,290 x 5,840 |
| Height | mm | 2,985 | |
| Net Weight | kg | 12,400 |
