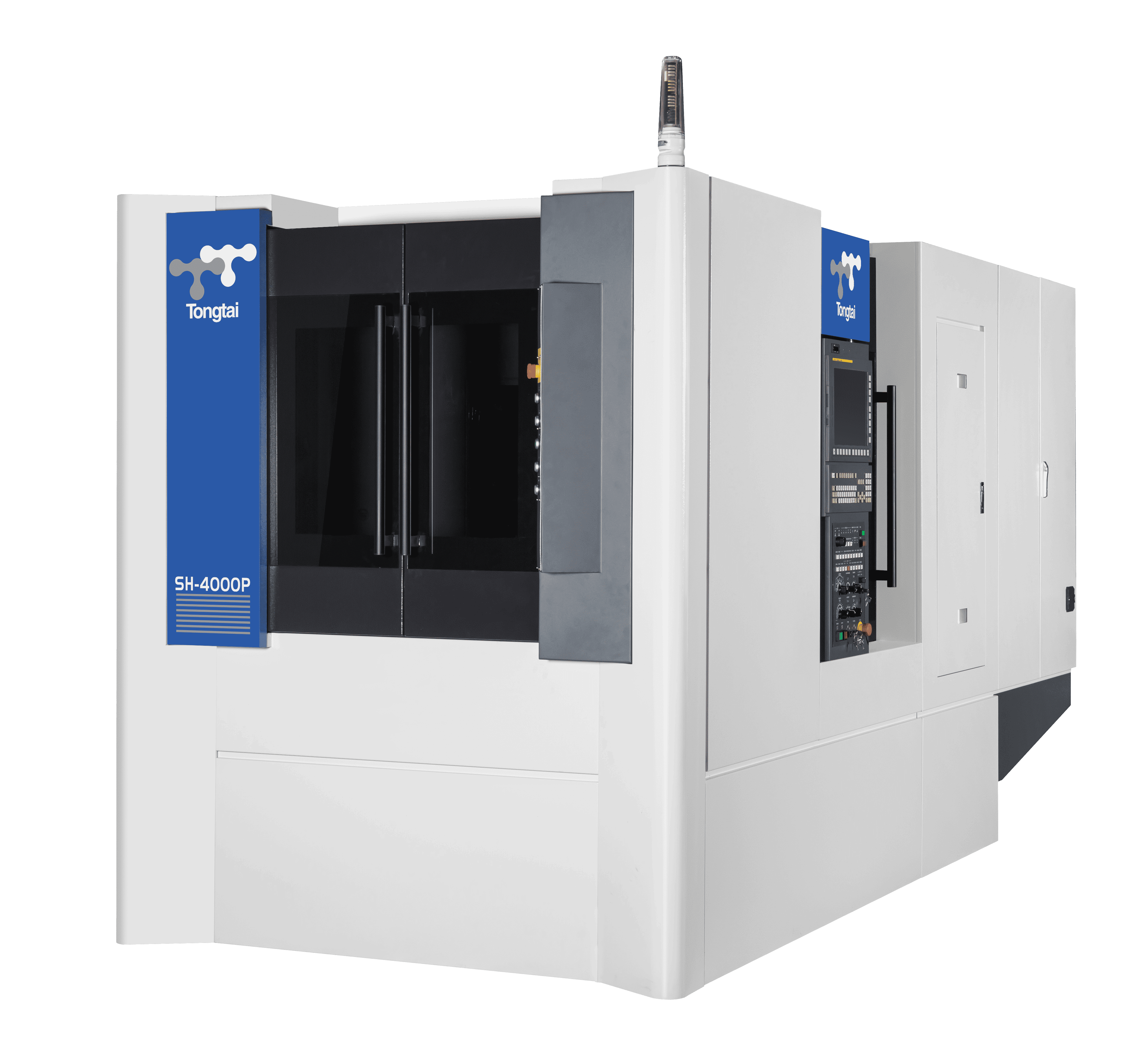

| Section | Feature | Unit | SH-4000P | SH-4500P | SH-5000P |
| TABLE | Table Size | mm | 400 X 400 | 400 X 400 (Opt. 500 x 500) | 500 X 500 |
| Max. Load Capacity | kg | 400 | 450 | 500 | |
| Table Height | mm | 1,100 | 1,200 | 1,200 | |
| Workpiece Size | mm | Ø550 X H800 | Ø630 x 900 | Ø800 x 1,000 | |
| B Axis Angle | degree | 0.001º | 0.001º | 0.001º | |
| SPINDLE | Spindle Taper | 7/24 Taper No.40 | 7/24 Taper No.40 | 7/24 Taper No.40 | |
| Spindle Speed | rpm | 15,000 | 15,000 | 15,000 | |
| AXES | X Axis Travel | mm | 510 | 630 | 730 |
| Y Axis Travel | mm | 510 | 630 | 730 | |
| Z Axis Travel | mm | 510 | 730 | 830 | |
| Distance Spindle Center to Table | mm | 80 - 590 | 80 - 710 | 80 - 810 | |
| Distance Spindle Nose to Table | mm | 70 - 580 | 70 - 800 | 70 - 900 | |
| X/Y/Z Rapid Traverse | m/min | 60 / 60 / 60 | 60 / 60 / 60 | 60 / 60 / 60 | |
| Cutting Feed Rate | mm/rev. | 1 - 20,000 | 1 - 20,000 | 1 - 20,000 | |
| ATC | Number of Tools | 40 (Opt. 60) | 40 (Opt. 60) | 40 (Opt. 60) | |
| Tool Holder | BT-40 (BBT-40) | BT-40 (BBT-40) | BT-40 (BBT-40) | ||
| Max. Tool Diameter | Ø75 | Ø75 | Ø75 | ||
| Max. Tool Length | mm | 300 | 450 | 550 | |
| Max. Tool Weight | kg | 8 | 8 | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 37 / 26 / 18.5 | 37 / 26 / 18.5 | 37 / 26 / 18.5 |
| X/Y/Z Servo Motor | kw | 5.5 / 5.5 / 4.5 | 5.5 / 5.5 / 4.5 | 5.5 / 5.5 / 4.5 | |
| Coolant Motor | kw | 1.5 x 5 | 1.5 x 5 | 1.5 x 5 | |
| MACHINE GENERAL | Width x Length | mm | 1,750 x 5,060 | 2,200 x 5,700 | 2,290 x 5,840 |
| Height | mm | 2,720 | 2,985 | 2,985 | |
| Net Weight | kg | 8,700 | 11,800 | 12,400 |
