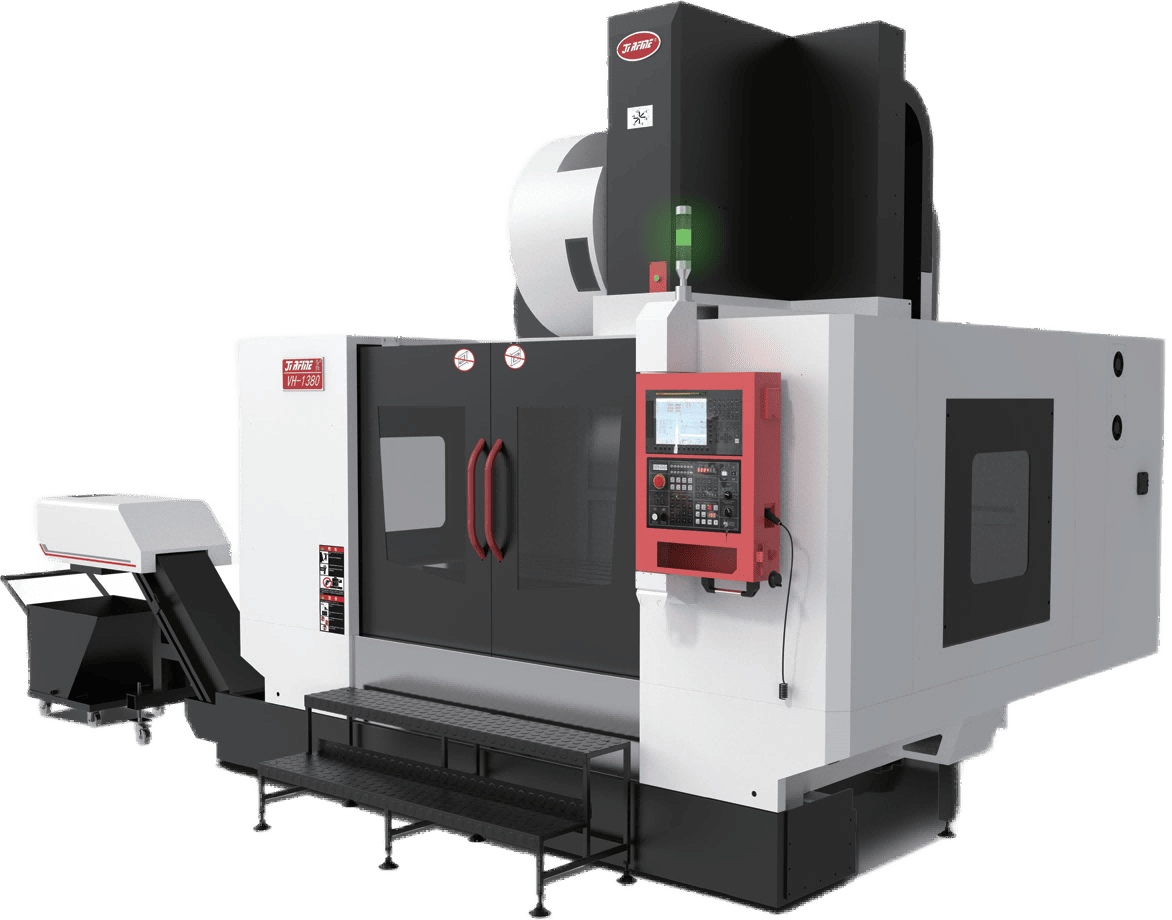

| Section | Specification | Unit | VH-1380 |
| TABLE | Table Size | mm | 1500 X 800 |
| Maximum Load Capacity | kg | 1200 | |
| T-Slots | mm | 22 X 5 X 125 | |
| Distance Spindle Nose to Table | mm | 200-1000 | |
| SPINDLE | Spindle Taper | BT50 | |
| Spindle Speed | rpm | 6000 | |
| AXES | X Axis Travel | mm | 1300 |
| Y Axis Travel | mm | 800 | |
| Z Axis Travel | mm | 800 | |
| Rapid Traverse Rates | m/min | 24 / 24 / 24 | |
| Cutting Feed Rate | mm/min | 1-10,000 | |
| ATC | Tool Capacity | pcs | 24 |
| Max. Tool Diameter | mm | Ø105 / Ø200 | |
| Max. Tool Length | mm | 350 | |
| Max. Tool Weight | kg | 15 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 11 / 15 |
| Servo Motor X/Y/Z | kw | 3.0 / 3.0 / 3.0 | |
| MACHINE DIMENSIONS | Width X Length | mm | 4,980 / 3,355 |
| Height | mm | 3,545 | |
| Net Weight | kg | 11,500 |
