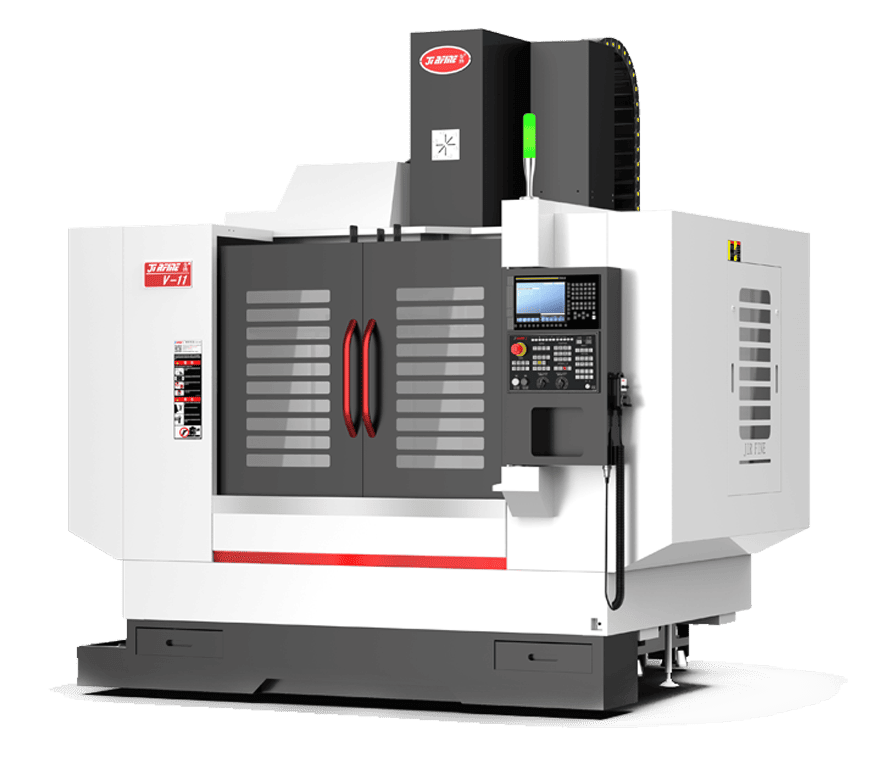

| Section | Specification | Unit | V-11 |
| TABLE | Table Size | mm | 1200 X 600 |
| Max. Load Weight | kg | 800 | |
| T-Slots | mm | 18 X 5 X 100 | |
| Distance Spindle Nose to Table | mm | 130-730 | |
| SPINDLE | Spindle Taper | BT40 / BBT40 | |
| Spindle Speed | rpm | 8000 / 12000 | |
| AXES | X Axis Travel | mm | 1100 |
| Y Axis Travel | mm | 600 | |
| Z Axis Travel | mm | 600 | |
| Rapid Traverse | m/min | 36 / 36 / 36 | |
| Cutting Feed Rate | mm/min | 1-10,000 | |
| ATC | Tool Capacity | pcs | 24 / 30 |
| Max. Tool Diameter | mm | Ø80 / Ø150 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 11/18.5 |
| Servo Motor X/Y/Z | kw | 3.0 / 3.0 / 3.0 | |
| MACHINE DIMENSIONS | Width X Length | mm | 2,900 / 2,680 |
| Height | mm | 3,050 | |
| Net Weight | kg | 6,600 |
