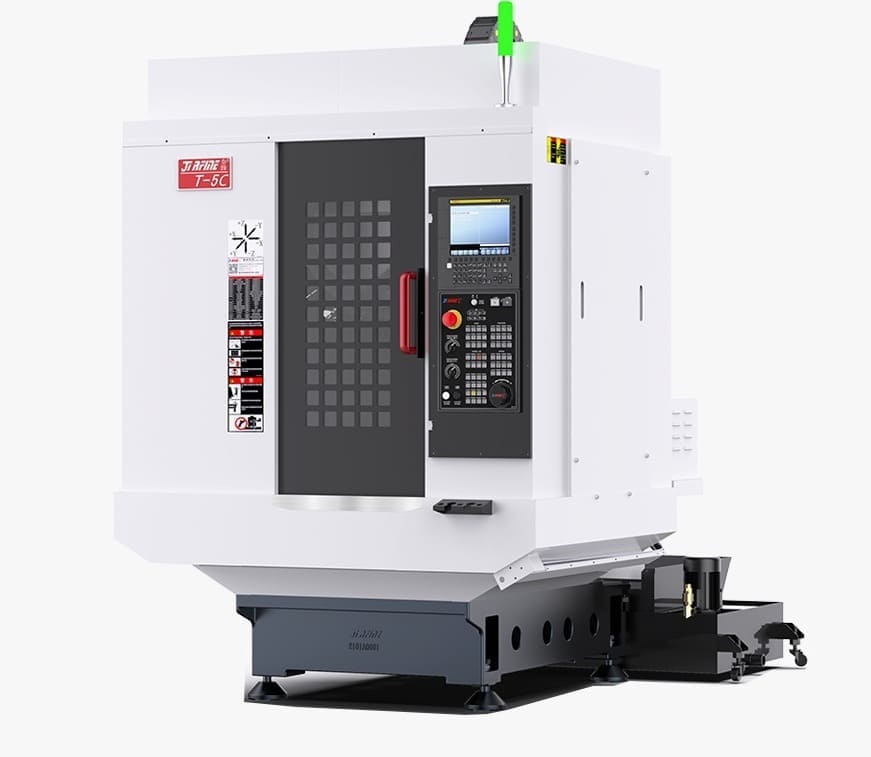

| Section | Specification | Unit | T-5C |
| TABLE | Table Size | mm | 650 X 400 |
| Max. Load Capacity | kg | 250 | |
| T-Slots | mm | 14 X 3 X 125 | |
| Distance Spindle Nose to Table | mm | 180-530 | |
| SPINDLE | Spindle Taper | BT30 | |
| Spindle Speed | rpm | 20,000 | |
| AXES | X Axis Travel | mm | 500 |
| Y Axis Travel | mm | 400 | |
| Z Axis Travel | mm | 350 | |
| Rapid Traverse Rates | m/min | 48 / 48 / 48 | |
| Cutting Feedrate | mm/min | 1-10,000 | |
| ATC | Tool Capacity | pcs | 21 |
| Max. Tool Diameter | mm | Ø100 / Ø140 | |
| Max. Tool Length | mm | 250 | |
| Max. Tool Weight | kg | 3 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 3.7 / 9 |
| Servo Motor X/Y/Z | kW | 2.5 / 2.5 / 2.7 | |
| MACHINE DIMENSION | Width X Length | mm | 1,720 / 2,575 |
| Height | mm | 2,442 | |
| Net Weight | kg | 2,750 |
