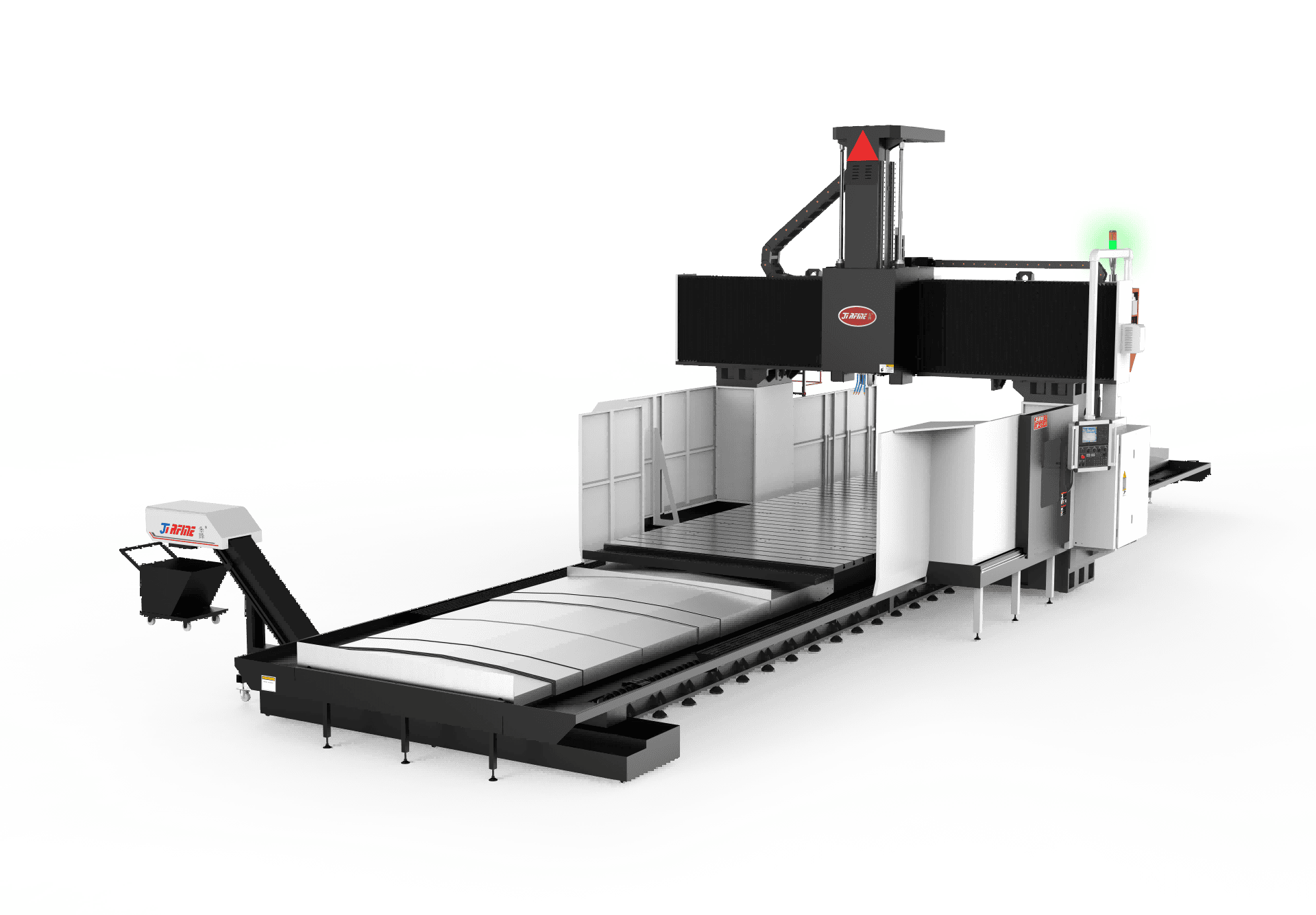

| Section | Specification | Unit | LM-8538 |
| TABLE | Table Size | mm | 3000 × 8000 |
| Maximum Load Capacity | T | 40 | |
| T-Slots | mm | 28 X 31 X 250 | |
| GANTRY | Distance from Spindle Nose to Table | mm | 300-1600 |
| Distance Between Columns | mm | 3800 | |
| SPINDLE | Spindle Taper | BT50 | |
| Spindle Speed | rpm | 6,000 | |
| AXES | X-Axis Travel | mm | 8500 |
| Y-Axis Travel | mm | 4500 | |
| Z-Axis Travel | mm | 1300 | |
| Rapid Traverse Rates | m/min | 8 / 8 / 8 | |
| Cutting Feed Rate | mm/min | 1-8,000 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 22/26 |
| Servo Motor X/Y/Z | kW | 9 / 7 / 7 | |
| MACHINE SIZE | Width × Length | mm | 19,510 / 6,780 |
| Height | mm | 6,000 | |
| Net Weight | T | 81 |
