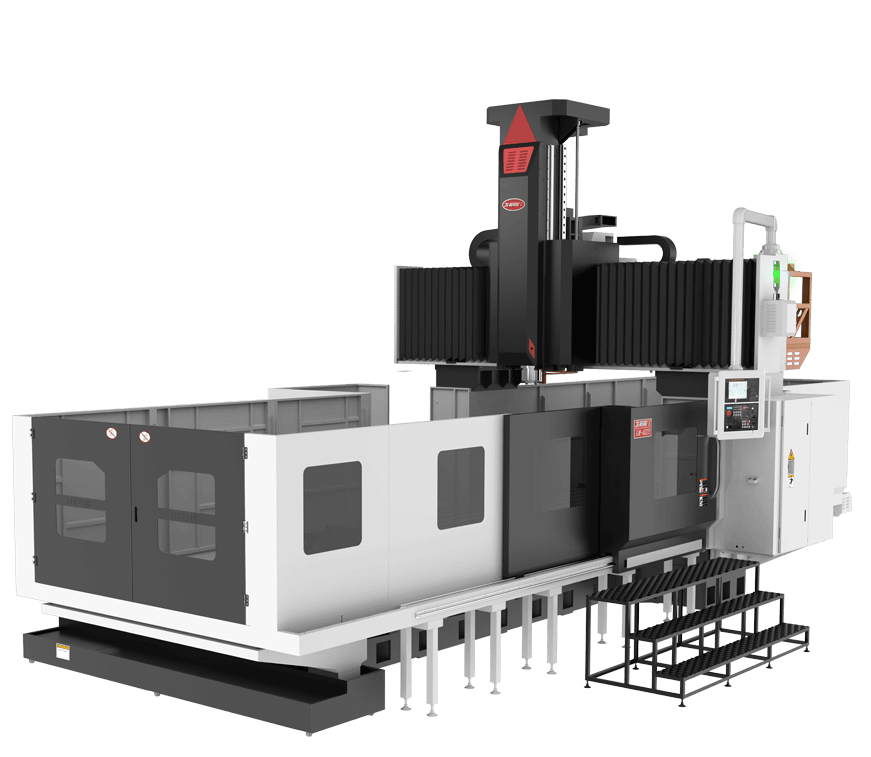

| Section | Specification | Unit | LM-5228 |
| TABLE | Table Size | mm | 5000 × 2000 |
| Maximum Load Capacity | T | 25 | |
| T-Slots | mm | 22 X 19 X 250 | |
| GANTRY | Distance from Spindle Nose to Table | mm | 300-1300 |
| Distance Between Columns | mm | 2800 | |
| SPINDLE | Spindle Taper | BT50 | |
| Spindle Speed | rpm | 6,000 | |
| AXES | X-Axis Travel | mm | 5200 |
| Y-Axis Travel | mm | 3350 | |
| Z-Axis Travel | mm | 1000 | |
| Rapid Traverse Rates | m/min | 10 / 12 / 12 | |
| Cutting Feed Rate | mm/min | 1-8,000 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 22/26 |
| Servo Motor X/Y/Z | kW | 6 / 7 / 7 | |
| MACHINE SIZE | Width × Length | mm | 12,635 / 6,125 |
| Height | mm | 5,010 | |
| Net Weight | T | 35 |
