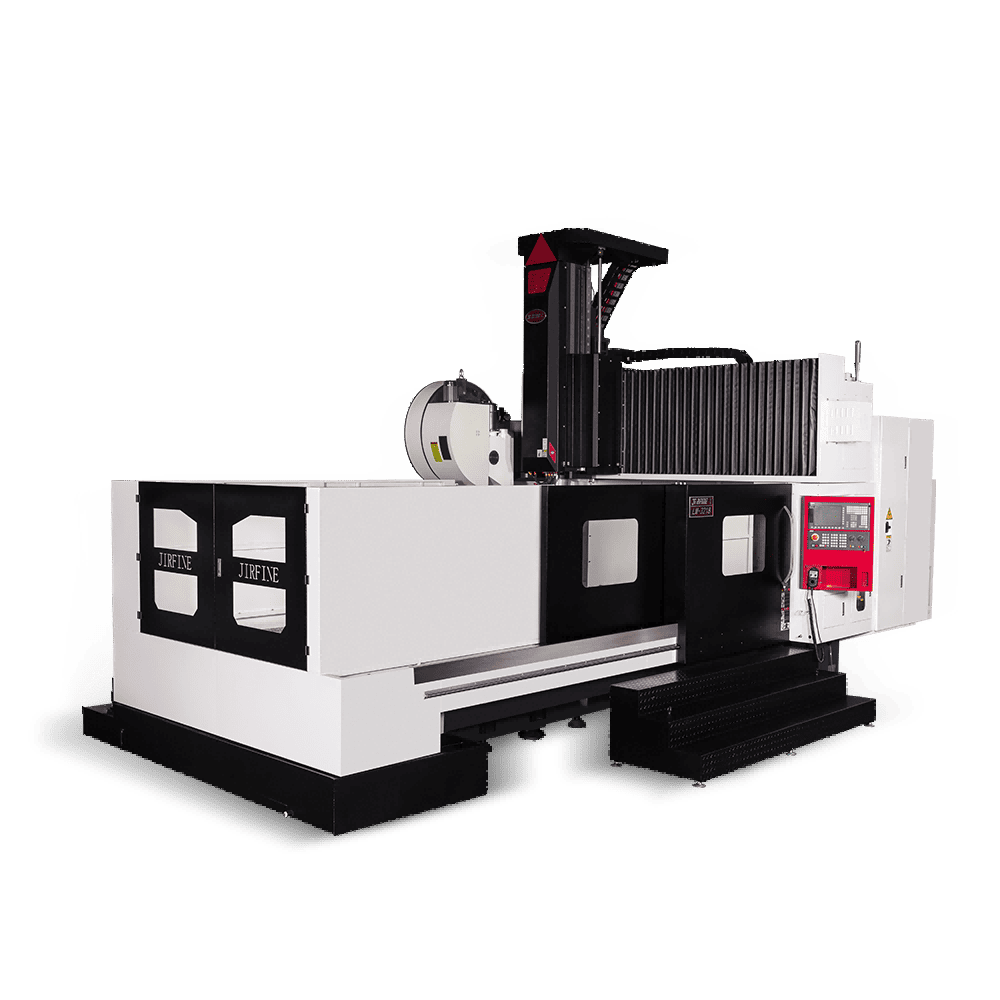

| Section | Specification | Unit | LM-3218 |
| TABLE | Table Size | mm | 1500 × 3000 |
| Maximum Load Capacity | T | 10 | |
| T-Slots | mm | 22 X 7 X 200 | |
| GANTRY | Distance from Spindle Nose to Table | mm | 200-1000 |
| Distance Between Columns | mm | 1800 | |
| SPINDLE | Spindle Taper | BT50 | |
| Spindle Speed | rpm | 6,000 | |
| AXES | X-Axis Travel | mm | 3200 |
| Y-Axis Travel | mm | 1800 + 150 | |
| Z-Axis Travel | mm | 800 | |
| Rapid Traverse Rates | m/min | 12 / 12 / 12 | |
| Cutting Feed Rate | mm/min | 1-8,000 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 15 / 18.5 |
| Servo Motor X/Y/Z | kW | 7.0 / 3.0 / 3.0 | |
| MACHINE SIZE | Width × Length | mm | 8,470 / 4,370 |
| Height | mm | 4,200 | |
| Net Weight | T | 21 |
