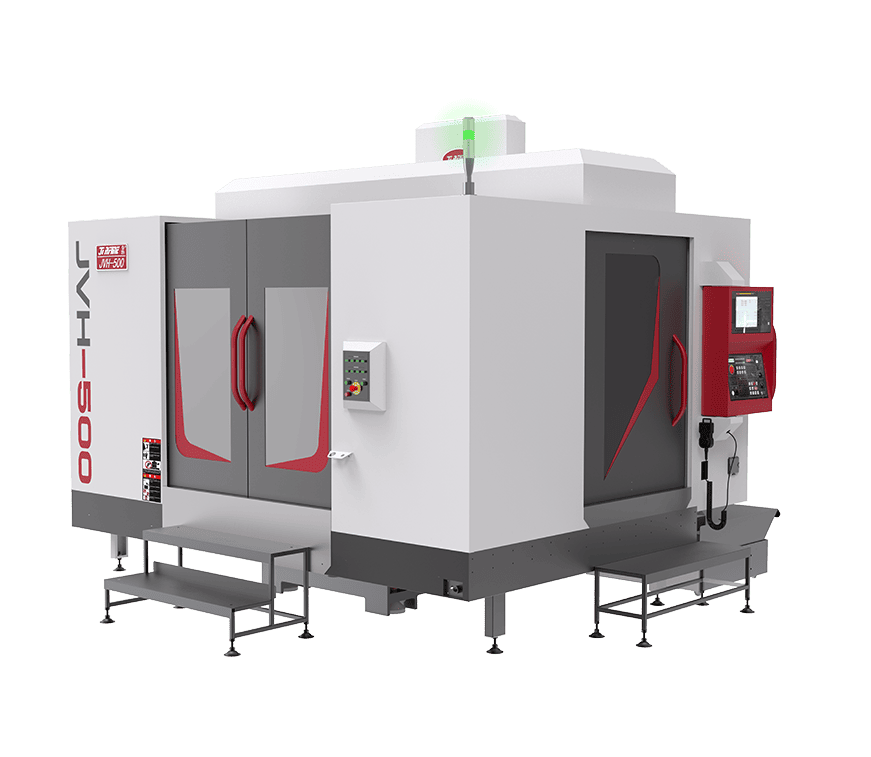

| Section | Specification | Unit | JVH-500 |
| TABLE | Table Size | mm | 500 X 500 |
| Max. Workpiece Size | Ø500x610 | ||
| Max. Load Capacity | kg | 750 | |
| Distance Spindle Nose to Table | mm | 185-835 | |
| SPINDLE | Spindle Taper | BT40 | |
| Spindle Speed | rpm | 12000 | |
| AXES | X Axis Travel | mm | 1100 |
| Y Axis Travel | mm | 610 | |
| Z Axis Travel | mm | 650 | |
| Rapid Traverse Rates | m/min | 36 / 36 / 36 | |
| Cutting Feed Rate | mm/min | 1-10,000 | |
| ATC | Tool Capacity | pcs | 24 |
| Max. Tool Diameter | mm | Ø78 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 5 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 11/15 |
| Servo Motor X/Y/Z | kw | 3.0 / 3.0 / 3.0 | |
| MACHINE DIMENSIONS | Width X Length | mm | 3,300 / 3,040 |
| Height | mm | 2,800 | |
| Net Weight | kg | 7,500 |
