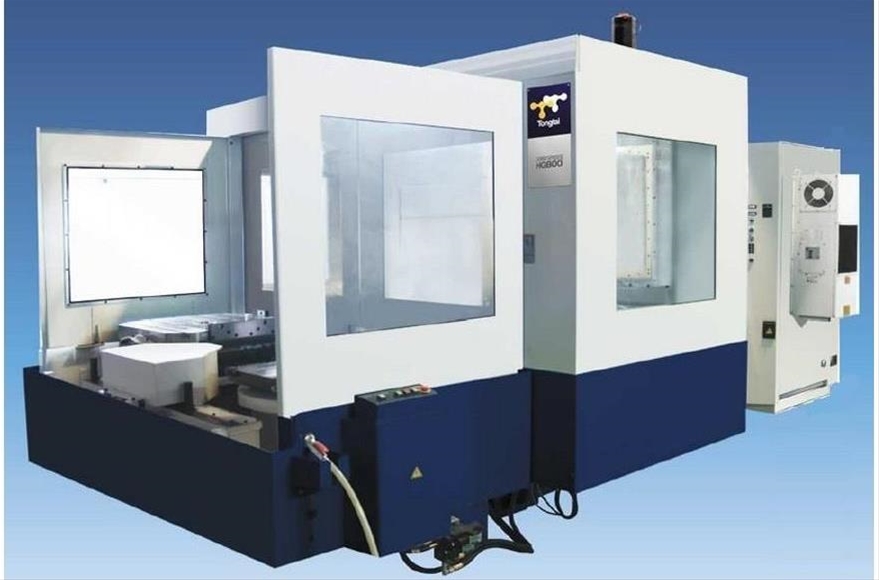

| Section | Feature | Unit | HG-800 |
|---|---|---|---|
| TABLE | Table Size | mm | 800 x 800 |
| Max. Load Capacity | kg | 1,600 | |
| Table Height | mm | 1,100 | |
| Workpiece Size | mm | Ø1,400 x H1,100 | |
| B Axis Angle | degree | 0.001º | |
| SPINDLE | Spindle Taper | - | BT50 |
| Spindle Speed | rpm | 3,600 | |
| AXES | X Axis Travel | mm | 1,120 |
| Y Axis Travel | mm | 950 | |
| Z Axis Travel | mm | 850 | |
| Distance from Spindle Center to Table | mm | 0 - 950 | |
| Distance from Spindle Nose to Table | mm | 250 - 1,100 | |
| X/Y/Z Rapid Traverse | m/min | 15 | |
| Cutting Feedrate | mm/rev | 1 - 5,000 | |
| ATC | Tool Capacity | - | 60 |
| Tool Holder | - | BT50 | |
| Max. Tool Diameter (without adjacent tool) | - | Ø125 (250) | |
| Max. Tool Length | mm | 610 | |
| Max. Tool Weight | kg | 25 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 22 / 18.5 |
| X/Y/Z Servo Motor | kW | 4.0 / 7.0 / 7.0 | |
| Coolant Motor | kW | 0.55 x 1 / 1.1 x 2 | |
| GENERAL MACHINE | Width x Length | mm | 5,930 x 3,940 |
| Height | mm | 3,370 | |
| Net Weight | kg | 18,500 |
