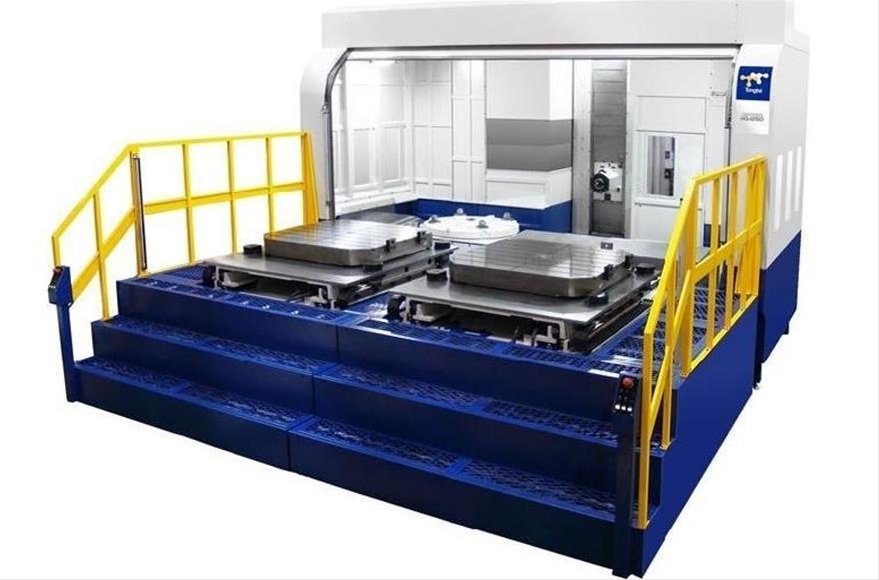

| Section | Specification | Unit | HG-1250 |
|---|---|---|---|
| TABLE | Table Size | mm | 1,250 x 1,250 |
| Max. Load Capacity | kg | 4,000 | |
| Table Height | mm | 1,300 | |
| Workpiece Size | mm | Ø1,970 x H1,500 | |
| B Axis Angle | degree | 0.001º | |
| SPINDLE | Spindle Taper | BT50 | |
| Spindle Speed | rpm | 3,600 (6,000) | |
| AXES | X Axis Travel | mm | 2,000 |
| Y Axis Travel | mm | 1,400 | |
| Z Axis Travel | mm | 1,250 | |
| Distance from Spindle Center to Table | mm | 0 - 1,400 | |
| Distance from Spindle Nose to Table | mm | 400 - 1,650 | |
| X/Y/Z Rapid Feed Rates | m/min | 20 | |
| Cutting Feed Rate | mm/rev | 1 - 10,000 | |
| ATC | Tool Capacity | 90 | |
| Tool Holder | BT50 | ||
| Max. Tool Diameter (no adjacent tool) | Ø125 (250) | ||
| Max. Tool Length | mm | 610 | |
| Max. Tool Weight | kg | 25 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 22 / 18.5 |
| X/Y/Z Servo Motor | kw | 6.0 / 6.0 / 6.0 | |
| Cooling Motor | kw | 0.55 x 1 / 1.1 x 2 | |
| MACHINE DIMENSIONS | Width x Length | mm | 8,600 x 5,000 |
| Height | mm | 4,030 | |
| Net Weight | kg | 29,500 |
