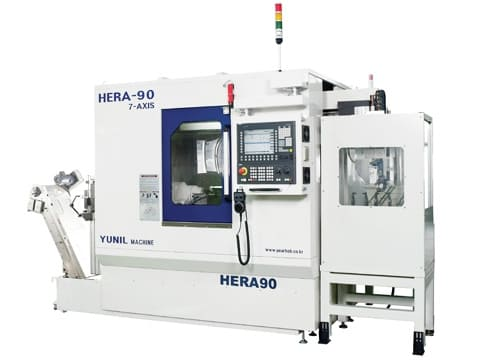

| Section | Specification | Unit | HERA-90 |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø900 |
| Module | 3 | ||
| Radial Travel (X Axis) | mm | 80 ( 10 ~ 90 ) | |
| Helix Angle (A Axis) | degree | +35° / -115° | |
| Hobbing Spindle Speed (B Axis) | rpm | 6,000 | |
| Table Speed (C Axis) | rpm | 1,000 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 200 ( 80 ~ 280 ) |
| Distance Between Centers | mm | 250 ( 175 ~ 705 ) | |
| Table Diameter | mm | Ø90 | |
|
HOBBING
|
Spindle Taper Type | BT #30 | |
| Max. Hobbing Diameter / Length | mm | Ø65 / Ø120 x 190 | |
| Max. Hobbing Shift Distance | mm | 160 | |
|
MOTOR
|
Total Power | kVA | 25 |
| Main Spindle Motor | kW | 5.5 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 2,480 x 2,550 x 2,050 | |
| Machine Weight | ton | 5 |
