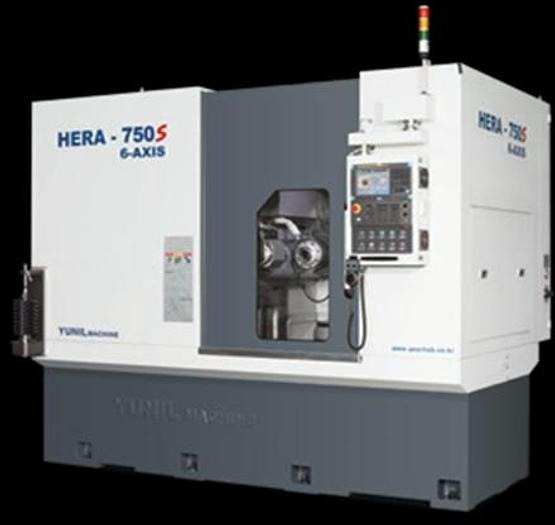

| Section | Specification | Unit | HERA-750 |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø780 |
| Module | 16 | ||
| Radial Travel (X Axis) | mm | 550 ( 80 ~ 630 ) | |
| Helix Angle (A Axis) | degree | +35° / -45° | |
| Hobbing Spindle Speed (B Axis) | rpm | 450 | |
| Table Speed (C Axis) | rpm | 50 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 480 ( 230 ~ 710 ) |
| Distance Between Centers | mm | 600 ( 400 ~ 1000 ) | |
| Table Diameter | mm | Ø720 | |
|
HOBBING
|
Spindle Taper Type | HSK #100 | |
| Max. Hobbing Diameter / Length | mm | Ø300 x 300 | |
| Max. Hobbing Shift Distance | mm | 280 | |
|
MOTOR
|
Total Power | kVA | 95 |
| Main Spindle Motor | kW | 22 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 4.500 x 3.000 x 3.200 | |
| Machine Weight | ton | 20 |
