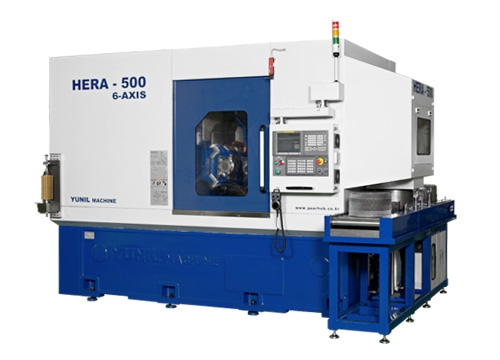

| Section | Specification | Unit | HERA-500 |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø600 |
| Module | 12 | ||
| Radial Travel (X Axis) | mm | 360 ( 60 ~ 420 ) | |
| Helix Angle (A Axis) | degree | +35° / -45° | |
| Hobbing Spindle Speed (B Axis) | rpm | 500 | |
| Table Speed (C Axis) | rpm | 100 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 360 ( 230 ~ 590 ) |
| Distance Between Centers | mm | 420 ( 400 ~ 820 ) | |
| Table Diameter | mm | Ø480 | |
|
HOBBING
|
Spindle Taper Type | NT #50 | |
| Max. Hobbing Diameter / Length | mm | Ø280 x 280 | |
| Max. Hobbing Shift Distance | mm | 250 | |
|
MOTOR
|
Total Power | kVA | 80 |
| Main Spindle Motor | kW | 12 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 3.500 x 2.800 x 2.900 | |
| Machine Weight | ton | 14 |
