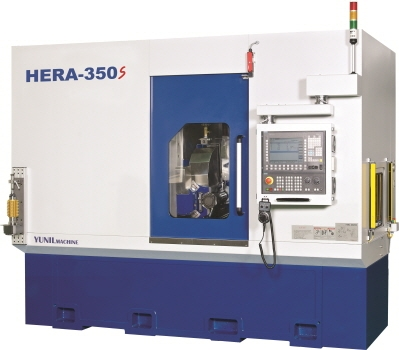

| Section | Specification | Unit | HERA-350S |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø350 |
| Module | 6 | ||
| Radial Travel (X Axis) | mm | 275 ( 35 ~ 310 ) | |
| Helix Angle (A Axis) | degree | +45° / -45° | |
| Hobbing Spindle Speed (B Axis) | rpm | 1,250 | |
| Table Speed (C Axis) | rpm | 500 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 320 ( 150 ~ 470 ) |
| Distance Between Centers | mm | 350 ( 410 ~ 760 ) | |
| Table Diameter | mm | Ø300 | |
|
HOBBING
|
Spindle Taper Type | NT #40 | |
| Max. Hobbing Diameter / Length | mm | Ø150 x 200 | |
| Max. Hobbing Shift Distance | mm | 180 | |
|
MOTOR
|
Total Power | kVA | 35 |
| Main Spindle Motor | kW | 11 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 2,920 x 2,375 x 2,650 | |
| Machine Weight | ton | 10 |
