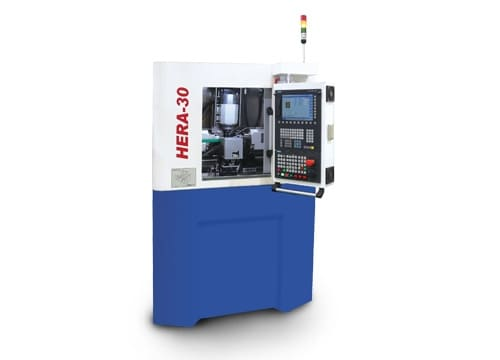

| Section | Specification | Unit | HERA-30 |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø40 |
| Module | 1.25 | ||
| Radial Travel (X Axis) | mm | 75 ( 5 ~ 80 ) | |
| Helix Angle (A Axis) | degree | +30° / -30° | |
| Hobbing Spindle Speed (B Axis) | rpm | 10,000 | |
| Table Speed (C Axis) | rpm | 6,000 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 90 ( 65 ~ 155 ) |
| Distance Between Centers | mm | 75 ( 5 ~ 80 ) | |
| Table Diameter | mm | Ø50 | |
|
HOBBING
|
Spindle Taper Type | x | |
| Max. Hobbing Diameter / Length | mm | Ø38 x 80 | |
| Max. Hobbing Shift Distance | mm | 70 | |
|
MOTOR
|
Total Power | kVA | 20 |
| Main Spindle Motor | kW | 5.5 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 1,000 x 1,100 x 1,800 | |
| Machine Weight | ton | 1.2 |
