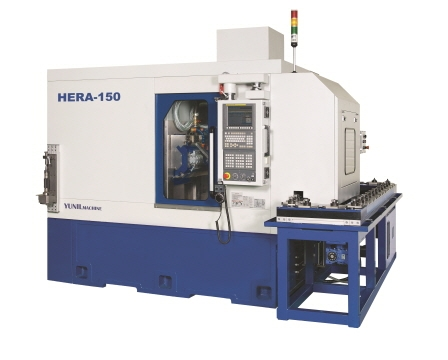

| Section | Specification | Unit | HERA-150 |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø100 |
| Module | 3.5 | ||
| Radial Travel (X Axis) | mm | 180 ( 15 ~ 195 ) | |
| Helix Angle (A Axis) | degree | +45° / -45° | |
| Hobbing Spindle Speed (B Axis) | rpm | 2,500 | |
| Table Speed (C Axis) | rpm | 600 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 250 ( 150 ~ 400 ) |
| Distance Between Centers | mm | 300 ( 300 ~ 600 ) | |
| Table Diameter | mm | Ø150 | |
|
HOBBING
|
Spindle Taper Type | NT #40 | |
| Max. Hobbing Diameter / Length | mm | Ø120 x 200 | |
| Max. Hobbing Shift Distance | mm | 170 | |
|
MOTOR
|
Total Power | kVA | 30 |
| Main Spindle Motor | kW | 25 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 2,400 x 2,000 x 2,400 | |
| Machine Weight | ton | 8 |
