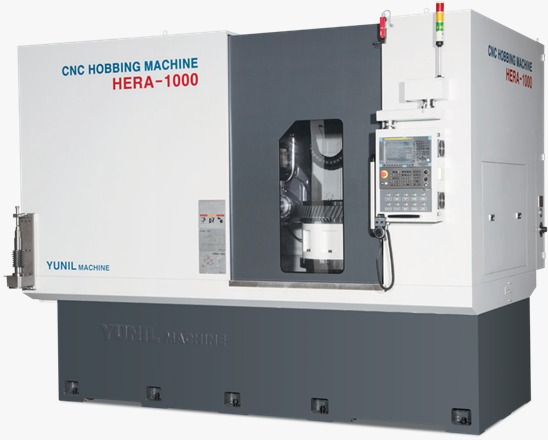

| Section | Specification | Unit | HERA-1000 |
|
CAPACITY
|
Max. Workpiece Diameter | mm | Ø1050 |
| Module | 16 | ||
| Radial Travel (X Axis) | mm | 650 ( 100 ~ 750 ) | |
| Helix Angle (A Axis) | degree | +35° / -45° | |
| Hobbing Spindle Speed (B Axis) | rpm | 400 | |
| Table Speed (C Axis) | rpm | 50 | |
|
WORKING AREA
|
Vertical Travel (Z Axis) | mm | 500 ( 250 ~ 750 ) |
| Distance Between Centers | mm | 600 ( 400 ~ 1000 ) | |
| Table Diameter | mm | Ø950 | |
|
HOBBING
|
Spindle Taper Type | HSK #100 | |
| Max. Hobbing Diameter / Length | mm | Ø320 x 340 | |
| Max. Hobbing Shift Distance | mm | 280 | |
|
MOTOR
|
Total Power | kVA | 150 |
| Main Spindle Motor | kW | 30 | |
| Control Unit | Fanuc 0i MF Plus 10.4'' Screen | ||
| Machine Dimensions | mm | 5.200 x 3.200 x 3.800 | |
| Machine Weight | ton | 23 |
