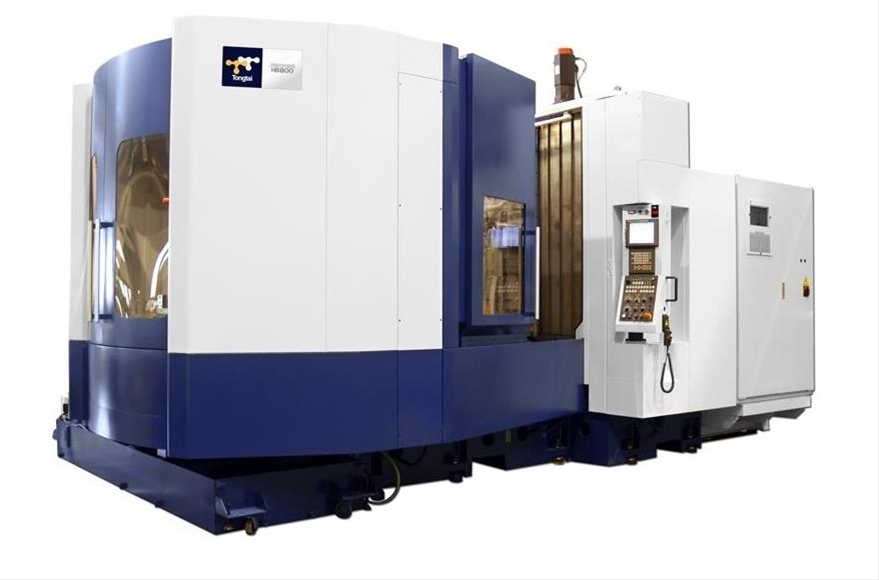

| Section | Specification | Unit | HB-800II |
|---|---|---|---|
| TABLE | Table Size | mm | 800 x 800 |
| Max. Load Capacity | kg | 1,800 x 2 | |
| Table Height | mm | 1,350 | |
| Workpiece Size | mm | Ø1,300 x H1,250 | |
| B Axis Angle | degree | 1º | |
| SPINDLE | Spindle Taper | BT50 | |
| Spindle Speed | rpm | 10,000 | |
| AXES | X Axis Travel | mm | 1,200 |
| Y Axis Travel | mm | 1,000 | |
| Z Axis Travel | mm | 1,000 | |
| Distance from Spindle Center to Table | mm | 100 - 1,100 | |
| Distance from Spindle Nose to Table | mm | 200 - 1,200 | |
| X/Y/Z Rapid Traverse | m/min | 50 | |
| Cutting Feedrate | mm/rev | 1 - 20,000 | |
| ATC | Tool Capacity | 60 | |
| Tool Holder | BT50 | ||
| Max. Tool Diameter (without adjacent tool) | Ø125 (250) | ||
| Max. Tool Length | mm | 610 | |
| Max. Tool Weight | kg | 25 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 30 / 25 |
| X/Y/Z Servo Motor | kw | 7.0 / 9.0 / 7.0 | |
| Cooling Motor | kw | 0.55 x 3 / 1.1 | |
| MACHINE GENERAL | Width x Depth | mm | 6,500 x 4,940 |
| Height | mm | 3,640 | |
| Net Weight | kg | 25,000 |
