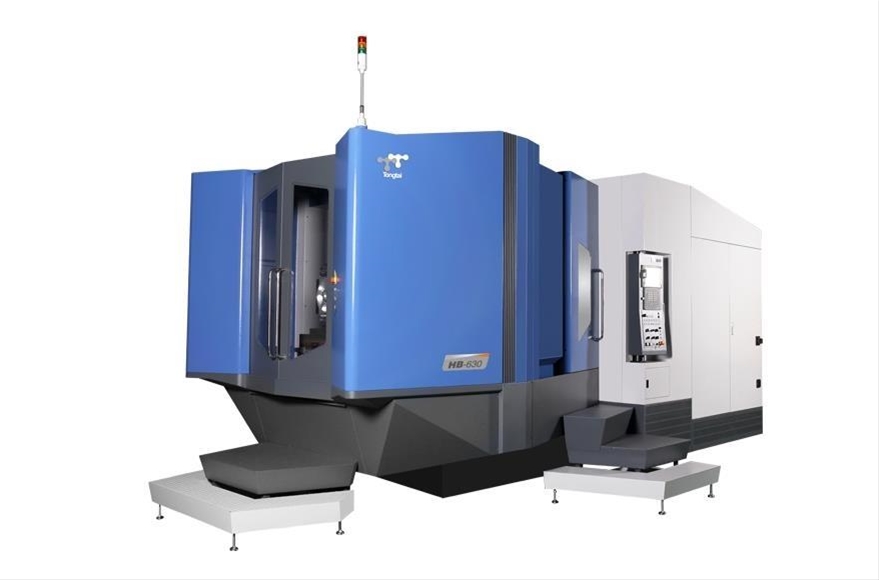

| Section | Specification | Unit | HB-630 |
|---|---|---|---|
| TABLE | Table Size | mm | 630 x 630 |
| Max. Load Capacity | kg | 1,200 x 2 | |
| Table Height | mm | 1,300 | |
| Workpiece Size | mm | Ø1,100 x H1,100 | |
| B-Axis Indexing | degree | 1º | |
| SPINDLE | Spindle Taper | - | BT.50 |
| Spindle Speed | rpm | 10,000 | |
| AXES | X-Axis Travel | mm | 1,050 |
| Y-Axis Travel | mm | 850 | |
| Z-Axis Travel | mm | 970 | |
| Spindle Center to Table | mm | 100 - 950 | |
| Spindle Nose to Table | mm | 100 - 1,070 | |
| X/Y/Z Rapid Feedrate | m/min | 50 | |
| Cutting Feedrate | mm/rev | 1 - 20,000 | |
| ATC | Tool Capacity | - | 50 |
| Tool Holder | - | BT50 | |
| Max. Tool Diameter (no adjacent tool) | - | Ø125 (250) | |
| Max. Tool Length | mm | 610 | |
| Max. Tool Weight | kg | 20 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 30 / 25 |
| X/Y/Z Servo Motor | kW | 7.0 / 7.0 x 2 / 7.0 | |
| Coolant Pump Motor | kW | 0.55 x 3 / 1.1 | |
| GENERAL | Overall Size (L x W) | mm | 5,900 x 4,400 |
| Height | mm | 3,150 | |
| Net Weight | kg | 20,000 |
