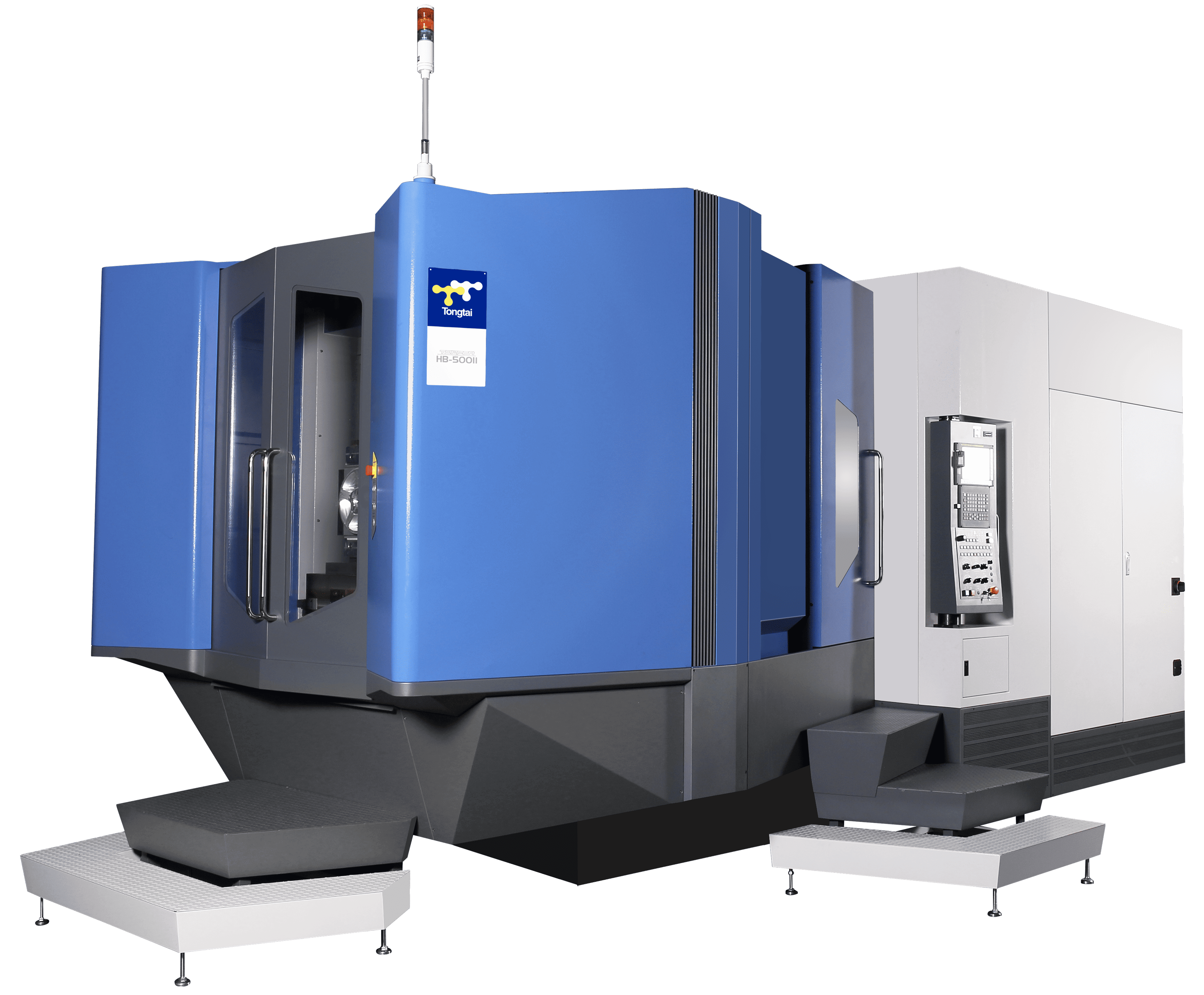

| Section | Specification | Unit | HA-500II |
|---|---|---|---|
| TABLE | Table Size | mm | 500 x 500 |
| Max. Load Capacity | kg | 500 x 2 | |
| Table Height | mm | 1150 | |
| Workpiece Size | mm | Ø800 x H900 | |
| B Axis Angle | degree | 1º (Opt. 0.001) | |
| SPINDLE | Spindle Taper | - | BT40 |
| Spindle Speed | rpm | 12,000 | |
| AXES | X Axis Travel | mm | 710 |
| Y Axis Travel | mm | 680 | |
| Z Axis Travel | mm | 680 | |
| Spindle Center to Table Distance | mm | 80 - 760 | |
| Spindle Nose to Table Distance | mm | 70 - 750 | |
| X/Y/Z Rapid Traverse | m/min | 50 | |
| Cutting Feedrate | mm/rev | 1 - 20,000 | |
| ATC | Tool Capacity | - | 60 |
| Tool Holder | - | BT40 | |
| Max. Tool Diameter (no adjacent tool) | - | Ø70 (140) | |
| Max. Tool Length | mm | 410 | |
| Max. Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 25 / 22 |
| X/Y/Z Servo Motor | kw | 4.0 / 7.0 / 4.0 | |
| Cooling Motor | kw | 0.55 x 3 / 1.1 | |
| MACHINE GENERAL | Width x Depth | mm | 3660 x 4260 |
| Height | mm | 2960 | |
| Net Weight | kg | 12,200 |
