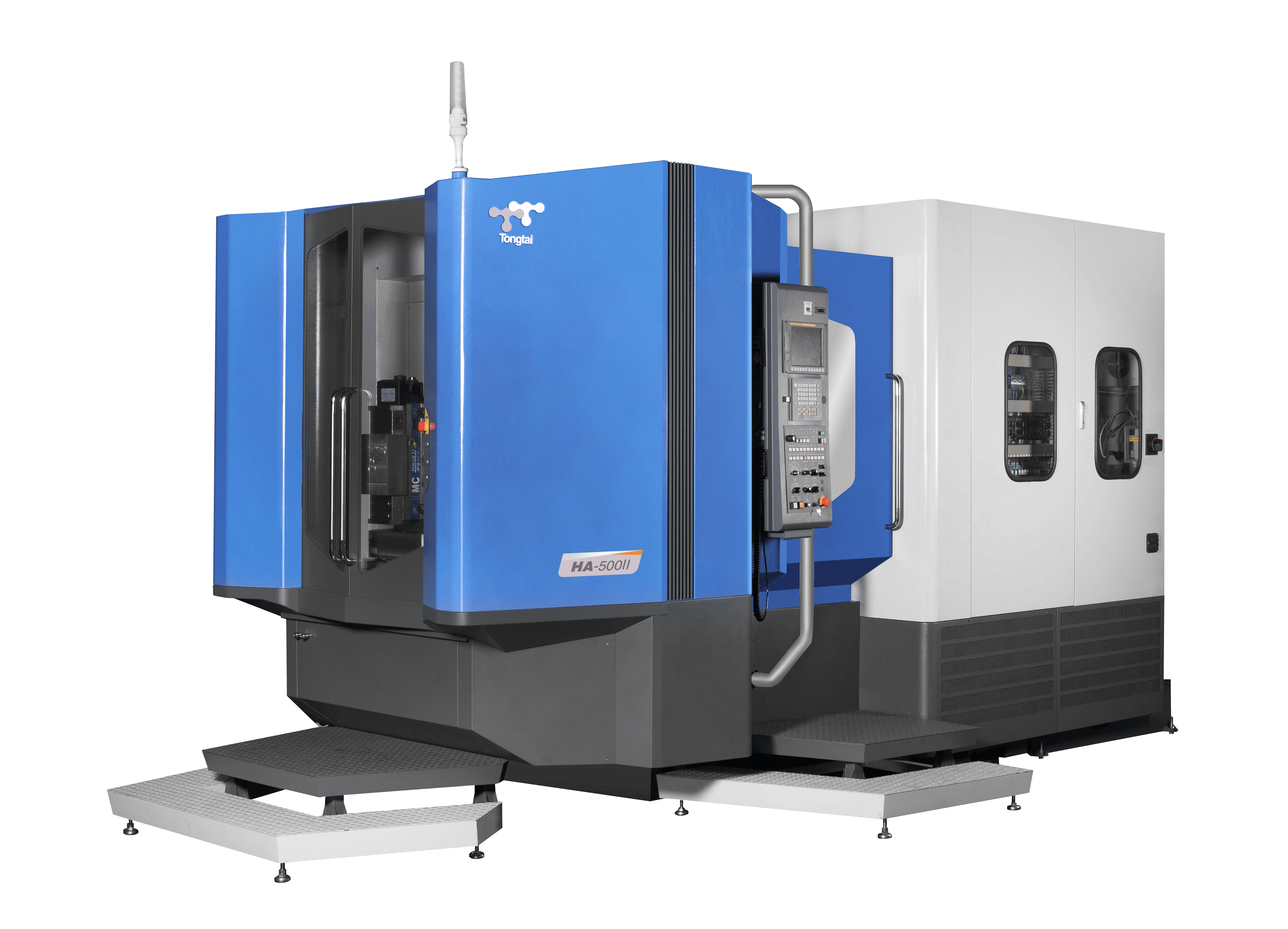

| Section | Specification | Unit | HA-500II |
|---|---|---|---|
| TABLE | Table Size | mm | 500 x 500 |
| Max. Load Capacity | kg | 500 x 2 | |
| Table Height | mm | 1,150 | |
| Workpiece Size | mm | Ø800 x H900 | |
| B-Axis Angle | degree | 1º (Opt. 0.001) | |
| SPINDLE | Spindle Taper | BT40 | |
| Spindle Speed | rpm | 12,000 | |
| AXES | X Axis Travel | mm | 710 |
| Y Axis Travel | mm | 680 | |
| Z Axis Travel | mm | 680 | |
| Distance from Spindle Center to Table | mm | 80 - 760 | |
| Distance from Spindle Nose to Table | mm | 70 - 750 | |
| X/Y/Z Rapid Traverse | m/min | 50 | |
| Cutting Feedrate | mm/rev | 1 - 20,000 | |
| ATC | Tool Capacity | 60 | |
| Tool Holder | BT40 | ||
| Max. Tool Diameter (no adjacent tool) | Ø70 (140) | ||
| Max. Tool Length | mm | 410 | |
| Max. Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 25 / 22 |
| X/Y/Z Servo Motor | kW | 4.0 / 7.0 / 4.0 | |
| Cooling Motor | kW | 0.55 x 3 / 1.1 | |
| GENERAL | Width x Depth | mm | 3,660 x 4,260 |
| Height | mm | 2,960 | |
| Net Weight | kg | 12,200 |
