Our goal is to provide manufacturers with the most suitable solutions while acting in an environmentally conscious manner, valuing human labor, and growing sustainably in strong harmony with our business partners. Thanks to the long-term and trust-based collaborations we have established with our suppliers, we aim to add value both to our country and to our company.

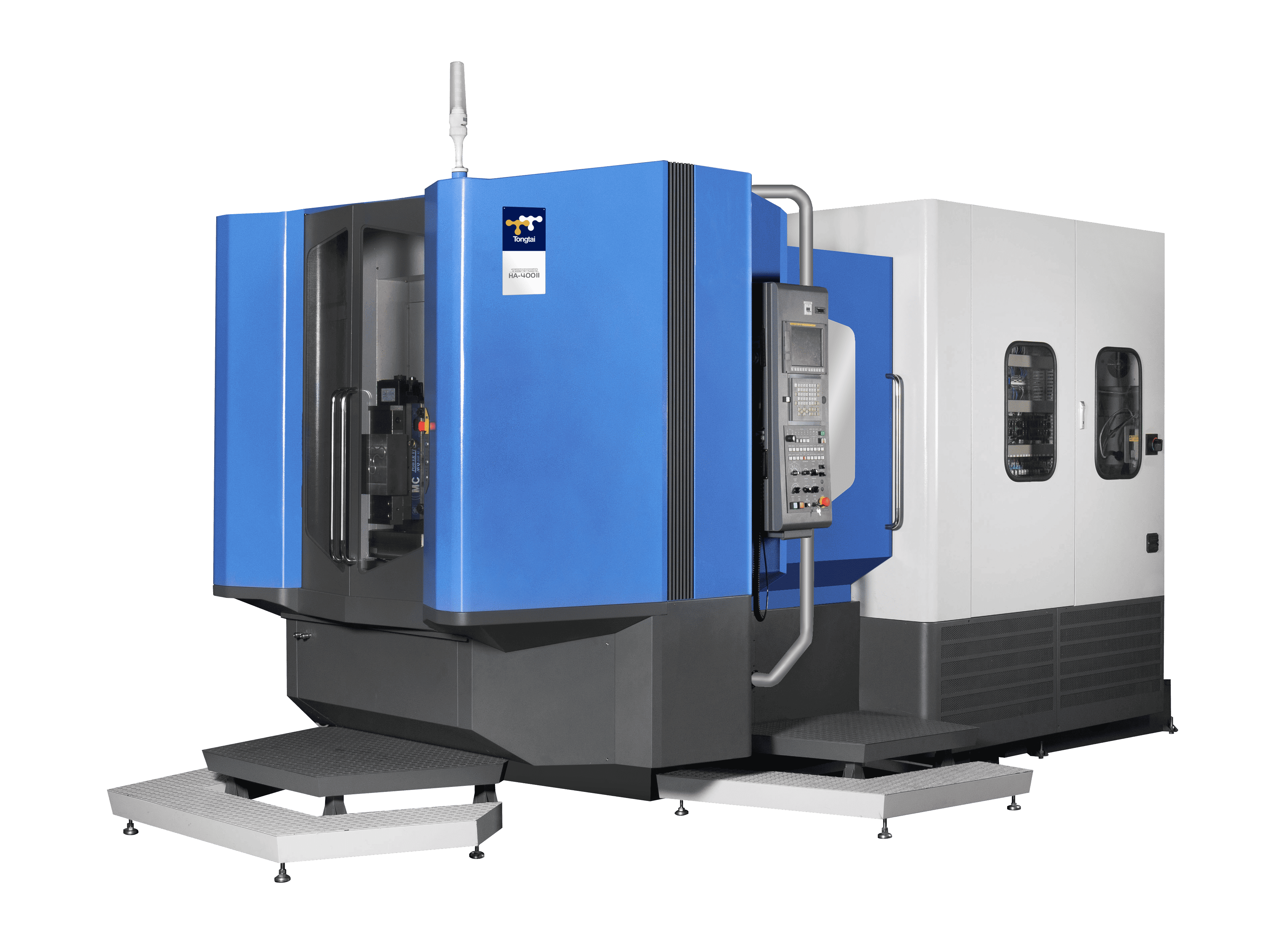

| Section | Specification | Unit | HA-400II |
| TABLE | Table Size | mm | 400 X 400 |
| Max. Load Capacity | kg | 400 X 2 | |
| Table Height | mm | 1,150 | |
| Workpiece Size | mm | Ø630 X H800 | |
| B Axis Angle | degree | 1º (Opt. 0.001) | |
| SPINDLE | Spindle Taper | BT.40 | |
| Spindle Speed | rpm | 12,000 | |
| AXES | X Axis Travel | mm | 610 |
| Y Axis Travel | mm | 580 | |
| Z Axis Travel | mm | 580 | |
| Distance Spindle Center to Table | mm | 70 - 650 | |
| Distance Spindle Nose to Table | mm | 80 - 660 | |
| X/Y/Z Rapid Feed Rates | m/min | 50 | |
| Cutting Feed Rate | mm/rev. | 1-20,000 | |
| ATC | Number of Tools | 60 | |
| Tool Holder | BT40 | ||
| Max. Tool Diameter (without adjacent tool) | Ø90 (180) | ||
| Max. Tool Length | mm | 360 | |
| Max. Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kw | 25 / 22 |
| X/Y/Z Servo Motor | kw | 4.0 / 7.0 / 4.0 | |
| Cooling Motor | kw | 0.55 x 3 / 1.1 | |
| MACHINE GENERAL | Width x Length | mm | 3,540 X 3,870 |
| Height | mm | 2,840 | |
| Net Weight | kg | 9,500 |
