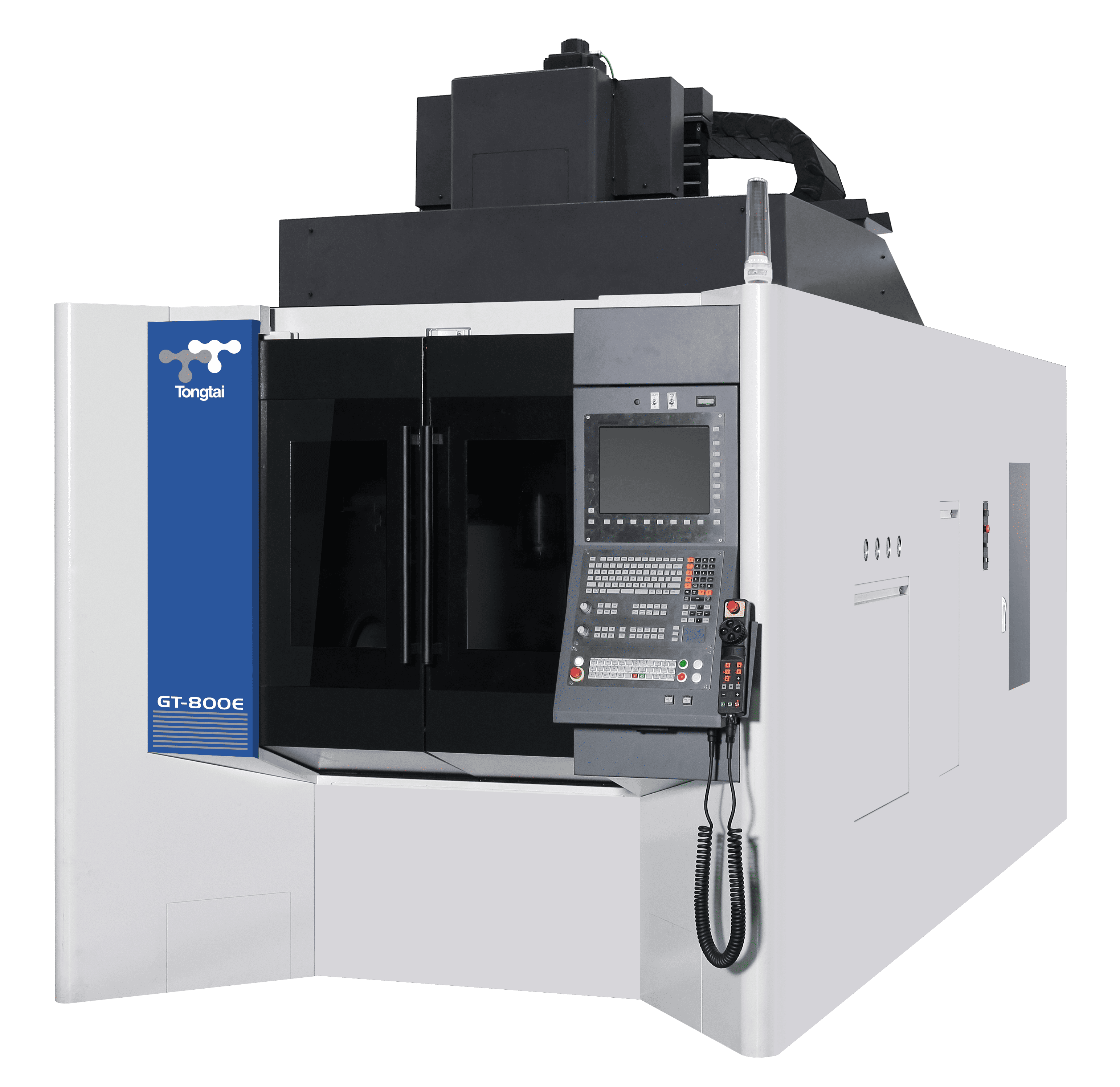

| Section | Specification | Unit | GT800 |
|---|---|---|---|
| TABLE | Table Size | mm | Ø800 |
| Maximum Load Weight | kg | 1,000 | |
| Table Height | mm | 1,100 | |
| Distance Spindle Nose to Table | mm | 100 - 760 | |
| SPINDLE | Spindle Taper | BT40 | |
| Spindle Speed | rpm | 15,000 | |
| AXES | X Axis Travel | mm | 850 |
| Y Axis Travel | mm | 1,020 | |
| Z Axis Travel | mm | 610 | |
| A Axis Travel | (-30°) ~ (+120°) | ||
| C Axis Travel | 360° | ||
| X/Y/Z Rapid Traverse | m/min | 48 / 48 / 48 | |
| ATC | Tool Capacity | pcs | 30 |
| Max. Tool Diameter | mm | Ø80 / 125 | |
| Max. Tool Length | mm | 300 | |
| Max. Tool Weight | kg | 8 | |
| MOTOR | Spindle Motor Power (50% ED) | kW | 40 / 40 |
| Servo Motor X/Y/Z | kW | 6.5 / 8.6 / 8.6 | |
| Cooling Motor | kW | 0.37 x 2 | |
| MACHINE SIZE | Width x Length | mm | 3,254 x 5,420 |
| Height | mm | 3,507 | |
| Weight | kg | 26,000 |
